Cable Alphanumeric Keyboard

GA200368
Ultrasound
Other Ultrasound
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

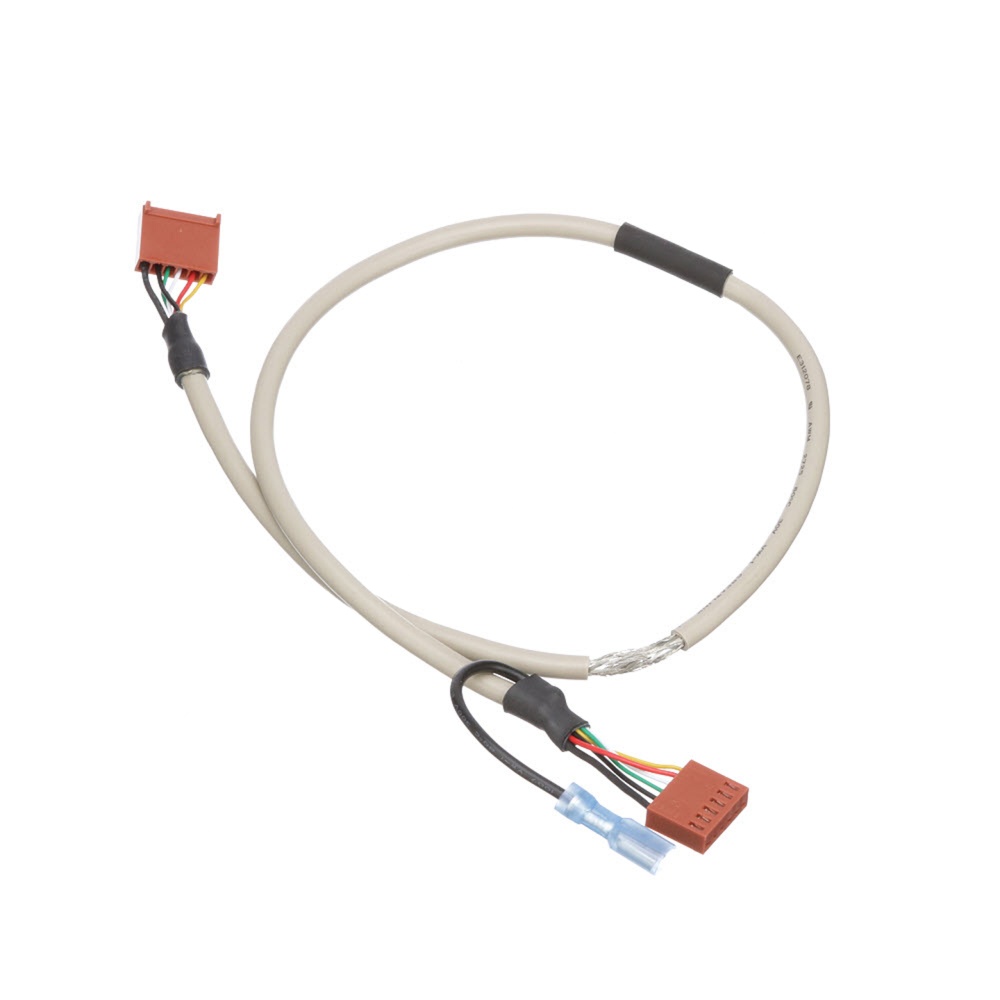

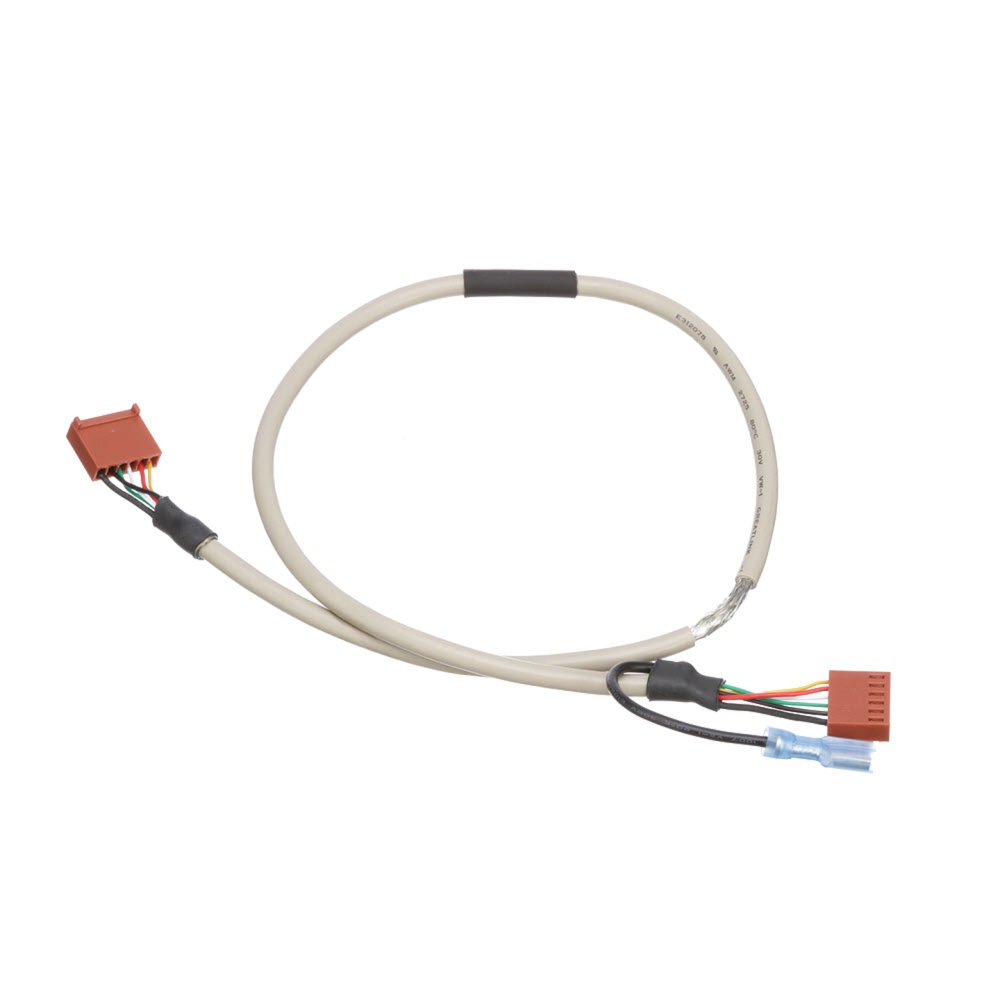

The Cable Alphanumeric Keyboard is used in the operator panel of ultrasound devices. The alphanumeric keyboard is connected to USB HUB, which in turn is connected to the display interface. The alphanumeric keyboard is situated on a drawer under the control panel. The operator panel is a complex user interaction device with several sub devices. This includes a trackball with buttons, an alphanumeric keyboard, a custom keyboard, and a touch panel overlay. The user can edit the actual text in the examination list window using the alphanumeric keyboard and by inserting pre-defined text input. The connection between operator main control board and alphanumeric keyboard which is mounted in a separate drawer is provided with the help of a cable. The cable has a 12 Volt USB link for the keyboard backlight and an external ground wire for Electro-Static Discharge (ESD). The 21 inch cable consists of 24 AWG soldered black wires with a connector housing termination at both the ends. It includes heat shrink reliefs at both the ends. The cable is provided with ESD grounding which helps to prevent build up static electricity and to safely ground a person working with the device. It is being used in Vivid q, Venue 40, CT LightSpeed 3.X Ultra 8-Slice and UL Vivid E9, among others.

Compatible Products

Vivid E9

Vivid E9
