Shielded Cable Assembly- Sypder to Thorax Column Bulkhead

5557046-2
5557046
X-Ray
Optima XR220
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

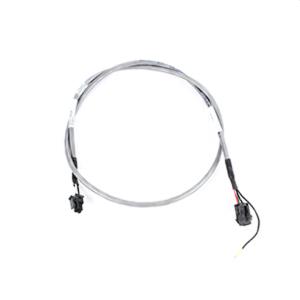

This cable assembly is used for interfacing the sypder to DAP of GE's X-Ray Systems. This cable assembly comprises of a 4 position-2 row female connector at one end and a 4 position-2 row male connector at the other end. The connectors are connected at the end of a 770 mm long, 22 AWG, 2 twisted pair, 7X30 stranded tinned copper conductor cable.The connector contacts are gold plated which offers excellent conductivity, heat protection, enhance durability and exceptional corrosion protection. This cable is properly shielded using aluminum polyester tape which offers good conductivity, electromagnetic insulation and high mechanical strength. The Polyethylene (PE) insulation with poly-vinyl chloride jacket offers lightweight, flexibility and shock absorbing property. This cable assembly comes with 25 mm long stripped off conductors at both ends and a 75 mm long drain wire to which a yellow colored ring terminal is connected. These stripped off conductors are protected using heat shrink tubes. For ease of identification this cable assembly comes with prelabeled information about the connecting ends.

Compatible Products

Optima XR220

Optima XR220

Equivalent Part

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
5557046
