P500D RCIM2 and Local Language Label Kit

5407498-1
X-Ray
Other X-Ray
GE HealthCare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

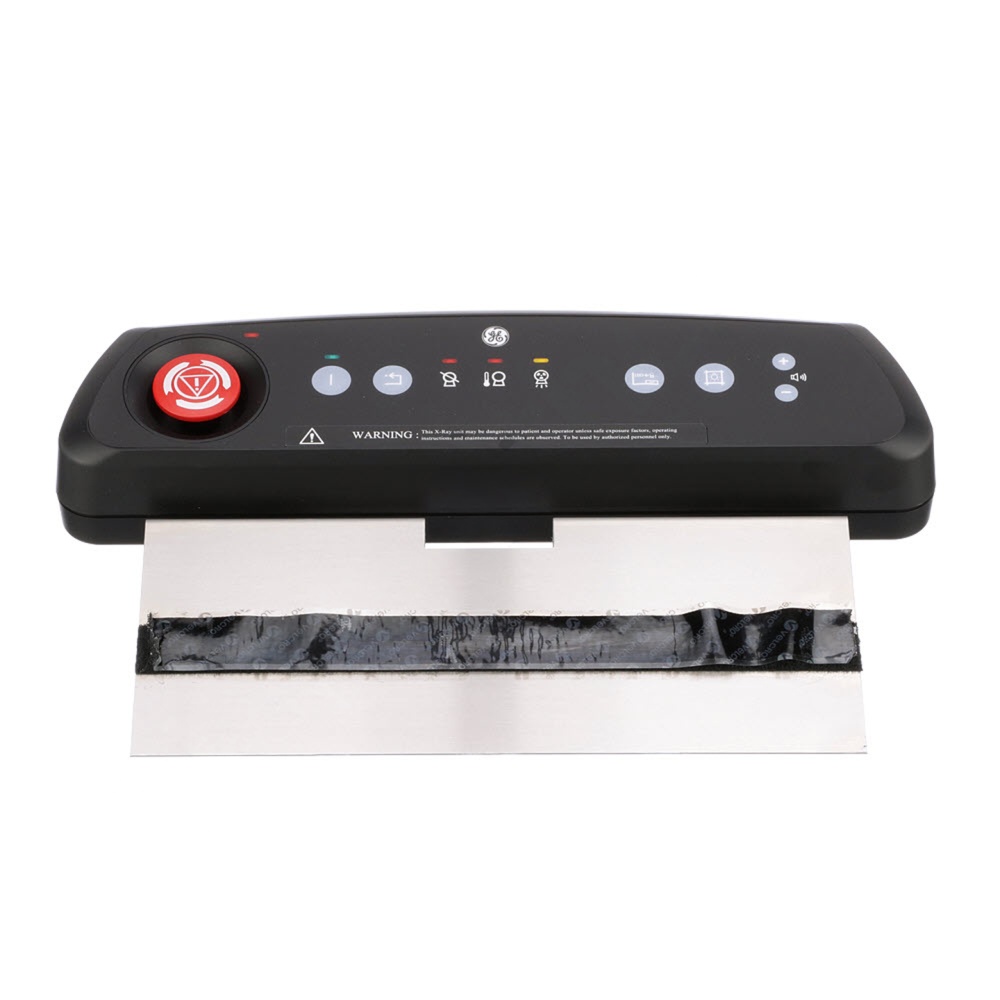

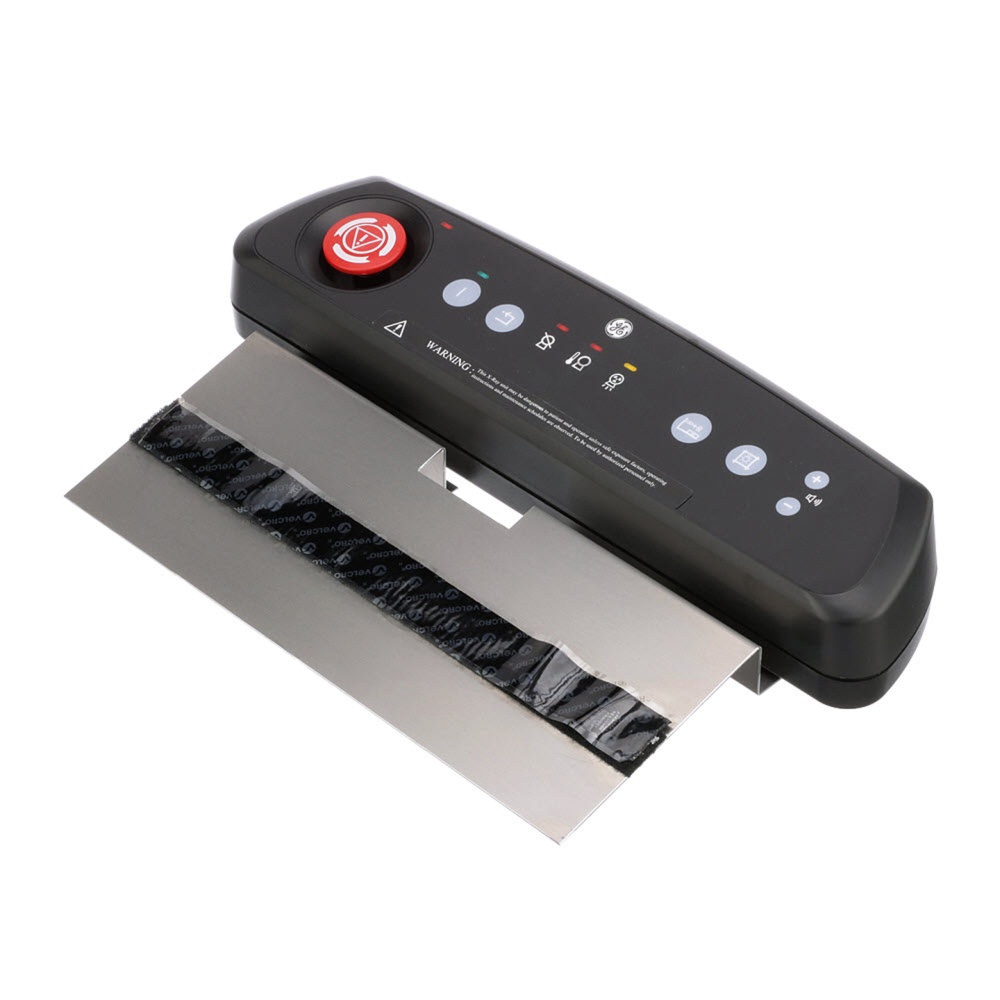

The P500D RCIM2 and Local Language Label Kit in X-ray consists of a common RCIM 2 module with English warning label for Aurora and a common RCIM2 local language label kit. The RCIM2 board PWA has a buzzer piezo, connector, resistor, capacitor, semiconductor diode, tactile switches, memory EEPROM, surface mount pin strip header, LED, regulator and reference voltage, crystal oscillator, ferrite bead, inductor, piezoelectric ringer, ferret chip, bar code label and Loctite adhesive. The LED is optically coupled to the phototransistor which features high collector-emitter voltage and high input-output isolation voltage. The Piezo buzzer has a continuous operating model that can be easily mounted. There are nine contacts in the new rectangular connector. Resistors are thick film with high reliability. The 600 volt connectors with PCB headers are black in color. Capacitors have high ripple current and are used for general purpose. The regulators and reference voltage are Pb-free devices that don’t require external components. They have fixed output. The Logic interface has one driver and receiver with 2.5 Mb/s as data rate. Tactile switches have a gull wing termination and they are lead-free. The memory size of the EEPROM is 4kbit. Ferrite beads are used to reduce the possibility of resonance and leaves signal waveforms distorted. Inductors and semiconductors are lead-free and RoHS compliant. Programmable system on a chip have advanced peripherals, full speed USB and flexible on-chip memory. The top cover and bottom cover of the Aurora RCIM2 RoHS are made from Sabic FR15U ABS, which have excellent indoor UV properties. The stainless steel is made to form Aurora RCIM2 Ground Bracket. The other parts are Aurora RCIM2 Ground Cable, M3 x 8mm Socket Head Cap, flat head screw, and hexagon Keps nut with external toothed lock washer, rubber foot stopper, pin Sub-D gasket, flat washer, and hexagon socket head cap screw. The labels are produced from the polyimide film that are used especially for barcode and alpha numeric identification in electrical components. They have a permanent pressure acrylic adhesive and a high opacity gloss white topcoat. The RCIM2 warning label, E-Stop warning label, protective earth ground IEC standard graphic symbol label, label ISO 7010-M002 for IEC V3 are the labels available in the kit. RCIM2 Warning Label with white text and black background are available in many languages.
