BT11 DTRX64 II Assembly
| 5399198 | |
| 5252321 5252321-2 | |
| Ultrasound | |
| LOGIQ P6 | |
| GE HealthCare | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview

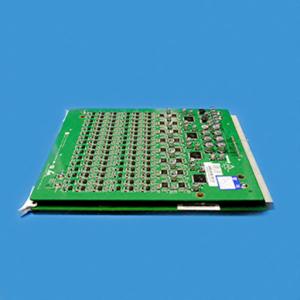

This DTRX64 II Assembly is a beam-forming part that's main function is Analog and Digital Signal Processing. It has 64 channels of analog and digital signal conditioning circuits that transmit a high voltage pulse, and receive and amplify the echo-backed small signals from a transducer through an Interface board. Each channel consists of a low-noise and active input termination pre-amplifier (LNA), voltage controlled amplifier (VGA), Low pass filter (AAF) and an analog to digital converter (ADC) in a receiver path, and a dual-TX-driver and TR switch in a transmiter path. A Transmit/Receiver Switch (T/R Switch) is a diode configuration that allows the pulser to drive the transducer, and protects the receiver preamp from large negative and positive voltages produced by the transmitter. The assembly includes MLB64 II and DTD64 circuit boards which are interconnected. This assembly can be used with Logiq P6 Ultrasound systems.
Equivalent Item(s):
Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent Item(s) | Item Details |
|---|---|
| 5252321 | LOGIQ P6 Dtrx 64 Channel Assembly |
| 5252321-2 | DTRX64 II Assy |
