MRX2 Non-CW

5393908-8
Ultrasound
Other Ultrasound
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

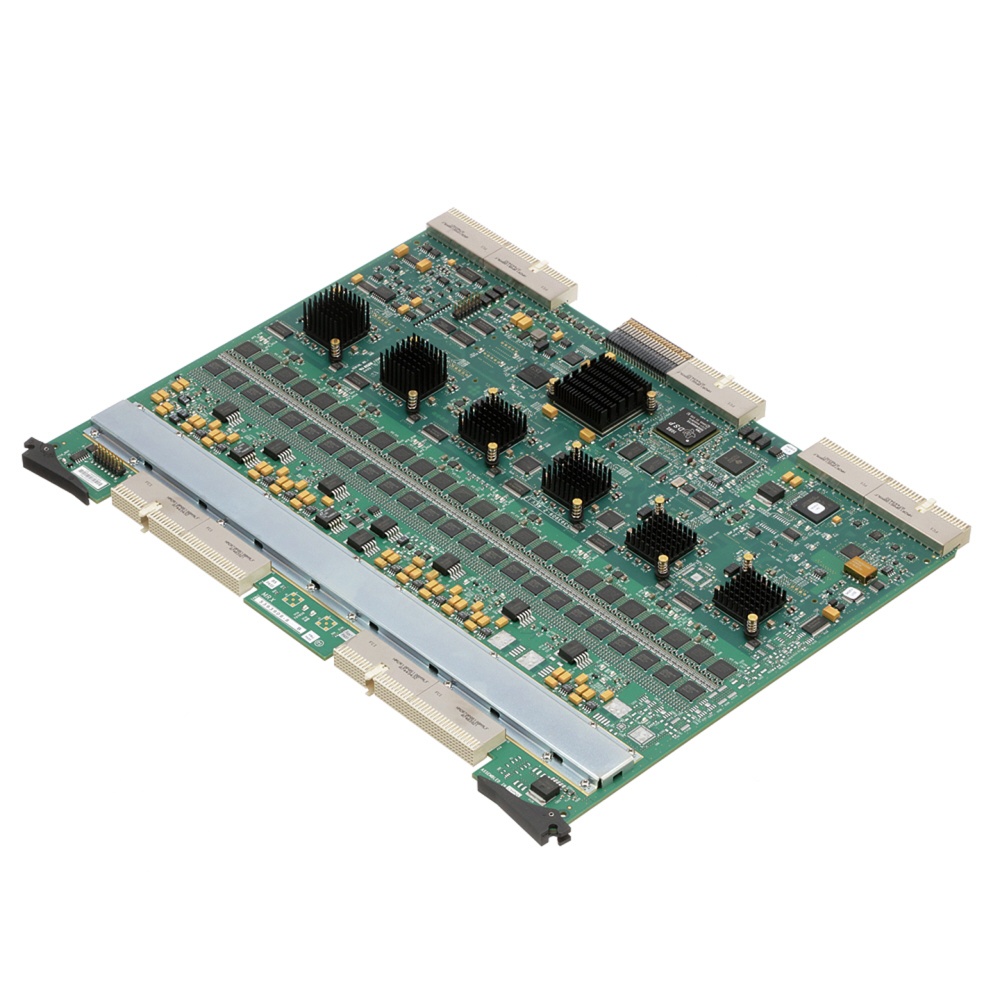

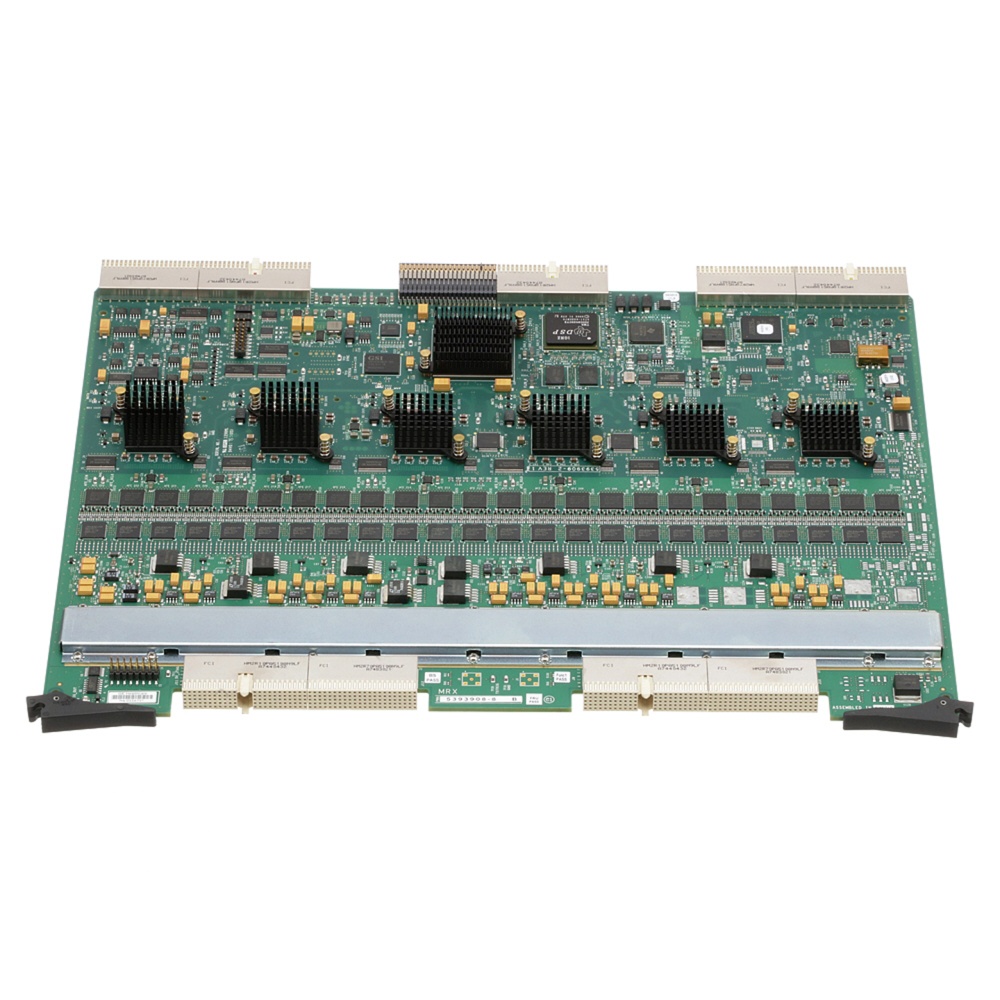

The Mixed Signal Received Board (MRX2) Non-CW is used in the ultrasound. The MRX Board combines the functionality of the Receiver Boards (DRX and GRX) and the GFI. The Transmit Pulse bursts transmitted, are still routed from the GTX board to the XD bus to the relay board where the ultrasound probes send the energy into the body. Weak ultrasound echoes from body structures and blood cells are received from the probes and routed to the relay board and the XD bus to the MRX board. The MRX board amplifies the ultrasound signal and connects it with an A/D converter to the digital domain. The digital signals are then further processed on the MRX boards. The components are soldered to a copper thermal pad on the circuit board. The voltage sensitivity enough to perform in a specific environment. The surface finish of the product is excellent and has high production rate. The product is securely packaged in a high quality packing box to avoid physical damage during transit. It is used in a wide range of medical equipment such as MSA Monitoring and other medical equipment.
