Joystick Encoder 8 Position

5207000-29
5207000-17
Ultrasound
LOGIQ E9
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

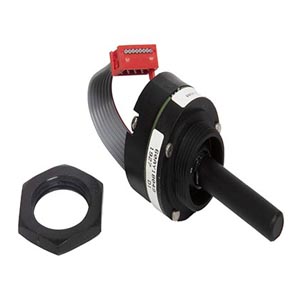

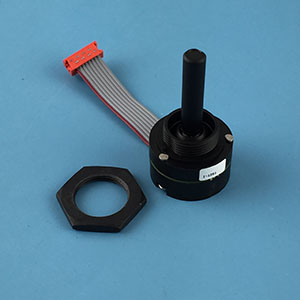

The Joystick Encoder 8 Position is used in ultrasound and other Digital Imaging (DI) healthcare devices. It is mounted in the operator panel of the machine and helps in scanning display functions. The touch panel and joystick rotary control arrangement comes together, and it is used in selecting the overlay of three dimensional dataset onto the ultrasound image. Pushing the overlay (joystick rotary controls) key provides a quick way to switch between all 2D ultrasound, 3D dataset or combination of both. Rotating this varies the relative weighting between the ultrasound and Magnetic Resonance (MR) or Computed Tomography (CT) images. It is also used in adjusting the brightness, contrast levels and other window adjustments. This assembly consists of joystick encoder, a ribbon cable, connectors and M17 x 1mm threaded bushing. It uses optical technology encoder on a 0.25 inch shaft to get 20 detent positions with A and B quadrature outputs and an integrated 8 position joystick with the same shaft. The connection to the circuit board is via ribbon cable and connectors. The end product comes with smooth finishing without any burrs, sharp edges, surface blemishes, sink marks and flash marks. This product is used specifically in systems like LOGIQ E9/S8/ F8/S7 Expert, Voluson E8, Signa Optima HDxt 23 1.5T, Innova 4100 and LightSpeed 3.X Ultra 8-Slice.

Compatible Products

LOGIQ E9

LOGIQ E9

The LOGIQ* E9 is a versatile general imaging system that helps meet a wide variety of general imaging needs. As healthcare evolves and ultrasound exams become more in demand, you need the ability to adapt to the changing environment with an ultrasound system that gives you flexibility, ease of use, speed and reliability.

The LOGIQ E9 can help you:

Deliver extraordinary image quality on a broad spectrum of patient body types.
Visualize blood flow without the limitations of Doppler
Enhance your workflow.
Integrate real-time ultrasound with previously acquired CT, MR, PET, or ultrasound images.
Visually track your position during a scan.

LOGIQ S8

LOGIQ S8

Equivalent Part
