Rod Link Connector
| 5147699-2 | |
| Magnetic Resonance Imaging | |
| 3.0T Discovery MR750 | |
| GE HealthCare | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview

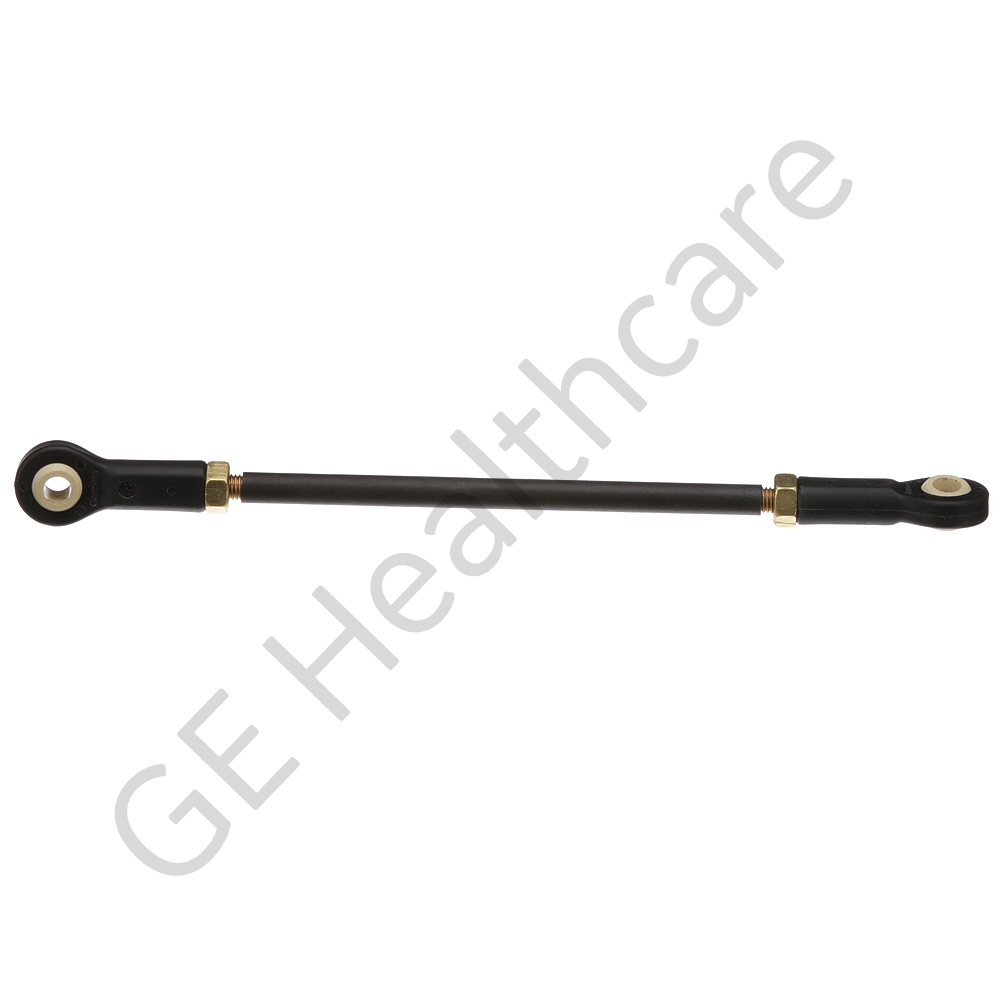

The Rod Link Connector is used in MR and PET patient tables which is part of the Magnetic Resonance Imaging (MRI) system. The construction of the rod link connector has a brass threaded rod with end female connector on both the ends. The threaded rod is shielded with a heat shrinkable tube, which is a plastic tube used to insulate the rod and provides abrasion resistance and environmental protection for stranded and solid wire conductors, connections, joints and terminals in electrical work. The igubal® rod ends are corrosion resistant and can be used without any problems in harsh environments. In moist or wet environments, they are resistant to weak acids and alkalines. Housing is made from igumid G, which is an extremely impact resistant long-fiber reinforced polymer. It is suitable for temperature ranges from -40° C to +90° C and long-term use. In standard spherical bearings, the spherical ball is made from iglidur® W300 material, which is known for the lowest coefficients of friction in a dry operation and has an extremely low tendency to stick-slip. One important advantage of igubal® spherical bearings is that rapid rotary movements of a mounted shaft take place directly in the spherical portion. This part is being used in MR Discovery MR750 3.0T, MR Discovery MR750w 3.0T, 450W, MR Discovery PET/MR 750w 3.0T, Legacy, Optima, 1.5 DV450W GEM, MR Discovery MR750w GEM 3.0T and many other systems because of its unique features. 3.0T and many other systems because of its unique features.
