Drive Longitudinal Assembly 5140683
5140683
5802134
Magnetic Resonance Imaging
Discovery 750 3.0T
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

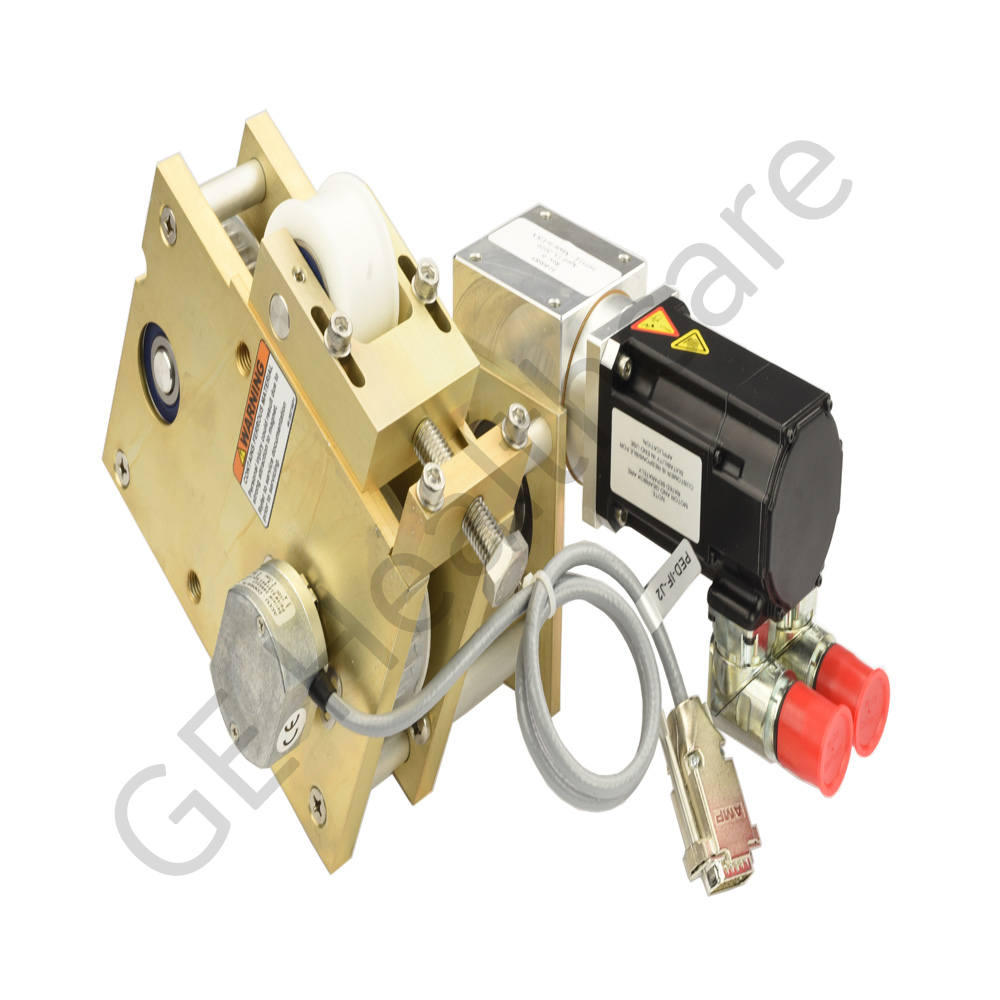

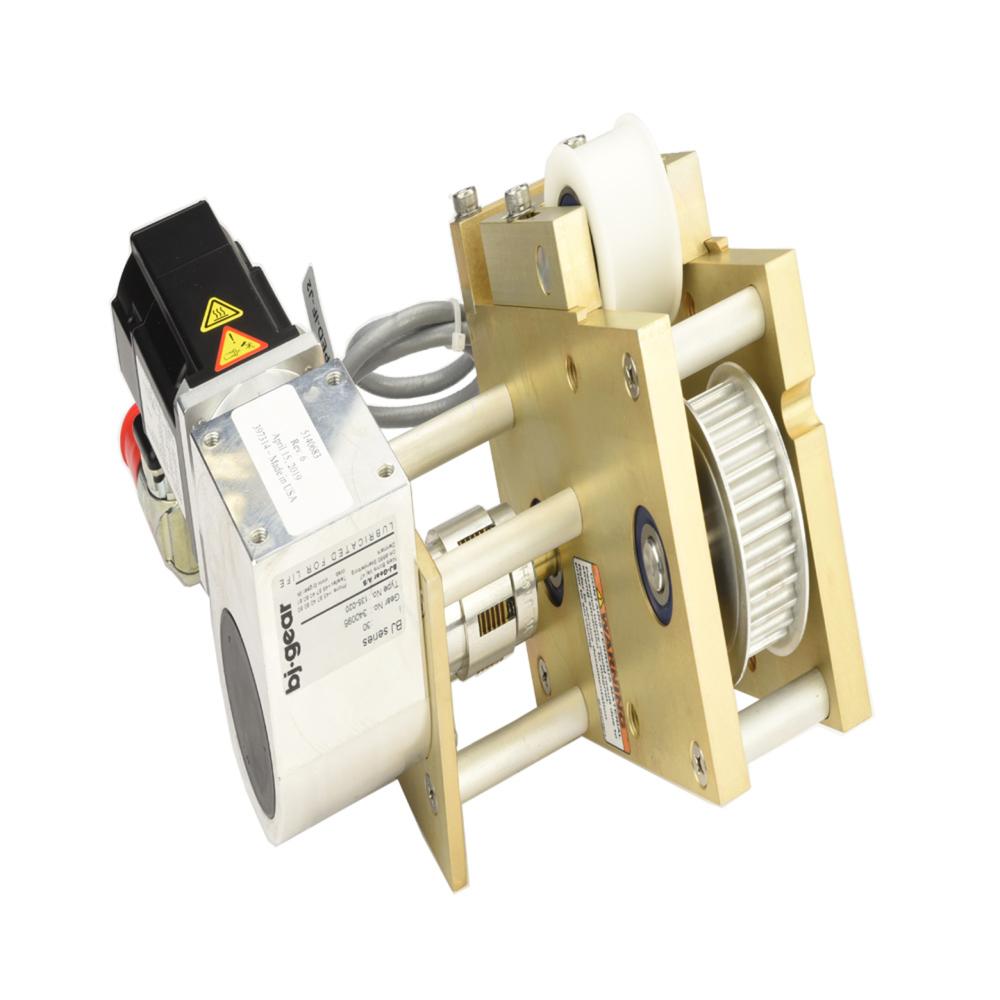

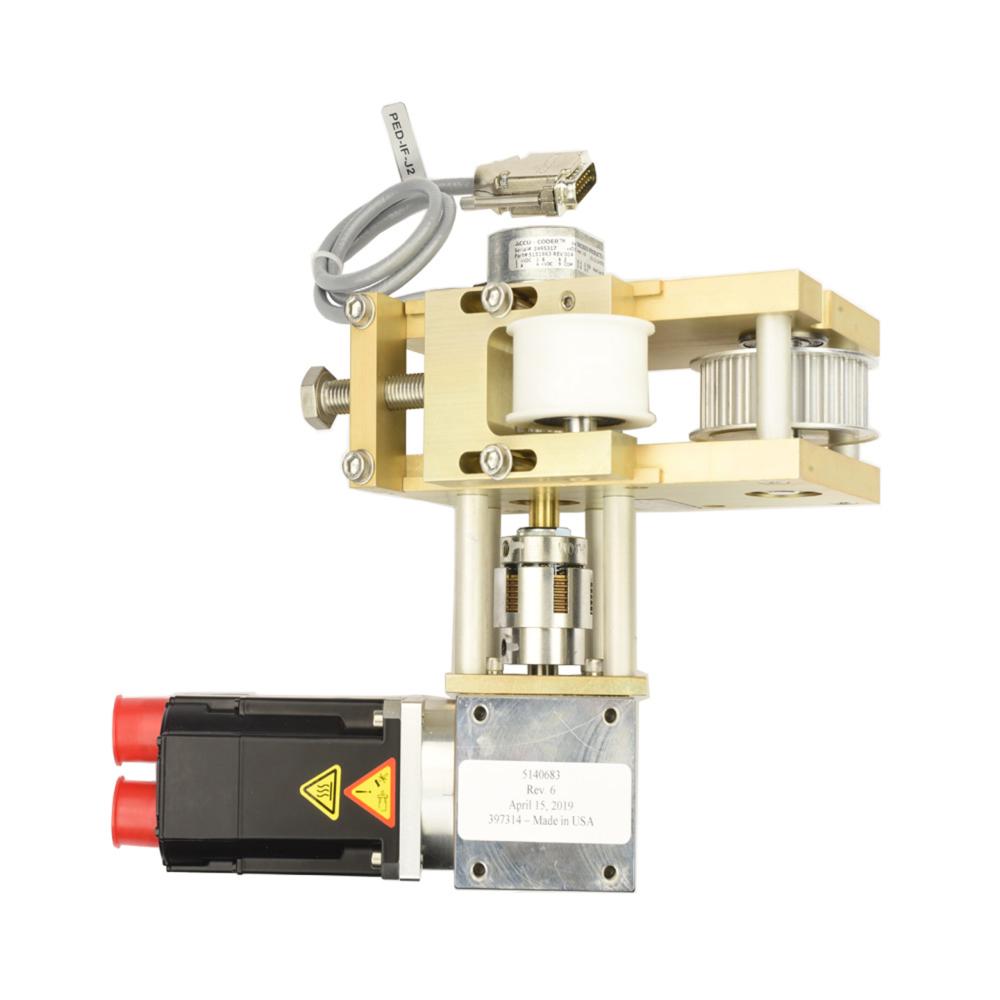

The Drive Longitudinal Assembly is assembled in rear pedestal assembly of Magnetic Resonance Imaging (MRI) system. The rear pedestal belongs to magnetic assembly and it has series of channel port system. Cables are routed inside the pedestal through rectangular opening bridge. The drive assembly is used to move the fiber longitudinally and in turn cause beam to rotate. The assembly consists of the yoke long drive, block jack screw, pulley tensioner, plate adapter BJ gearbox, shaft tensioner, encoder long drive DVMR, clutch long drive, sprocket driver, SKF bearing and sprocket idler. The material of the yoke long drive, block jack screw, plate adapter BJ gearbox and shaft tensioner are aluminum alloy which has good corrosion resistance feature. It has a surface finish of yellow chromate. Pulley tensioner is made up of acetal which is white in color. The sprocket driver & idler consists of 26 teeth with 66.21 pitch diameter. Balls and rings of bearings are made up of case hardened carburizing steel. It is double sealed using nylon steel and grease packed.

Compatible Products

Discovery 750w 3.0T

Discovery 750w 3.0T

Discovery 750w GEM 3.-T

Discovery 750w GEM 3.-T

Discovery 750 3.0T

Discovery 750 3.0T

Equivalent Part :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
5802134

LONG DRIVE ASSEMBLY
