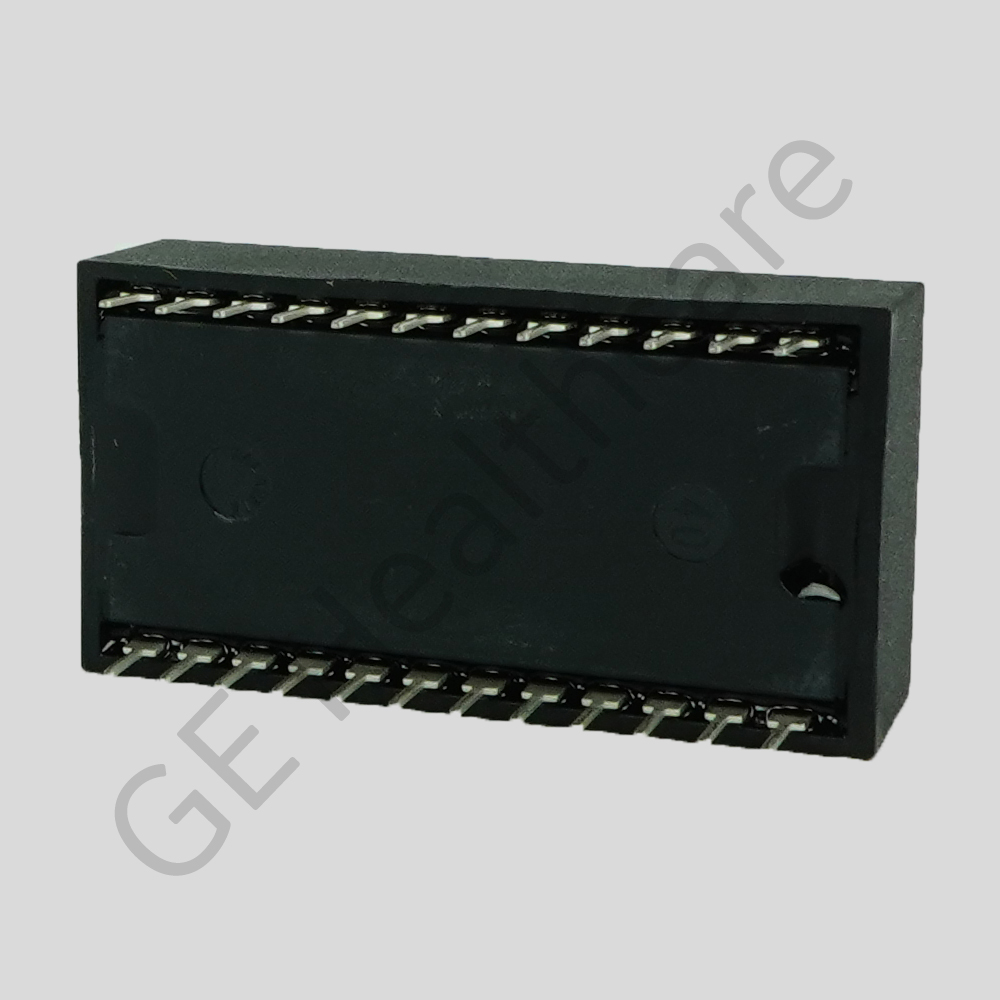

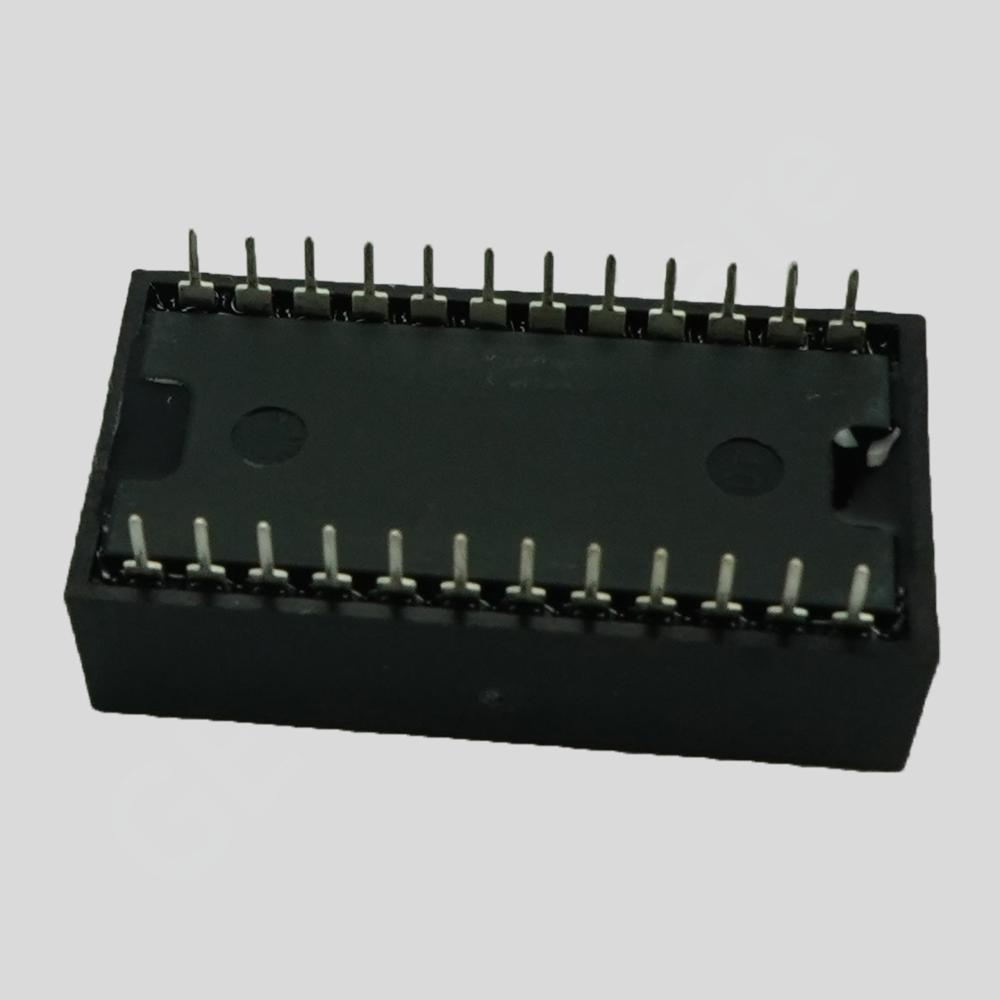

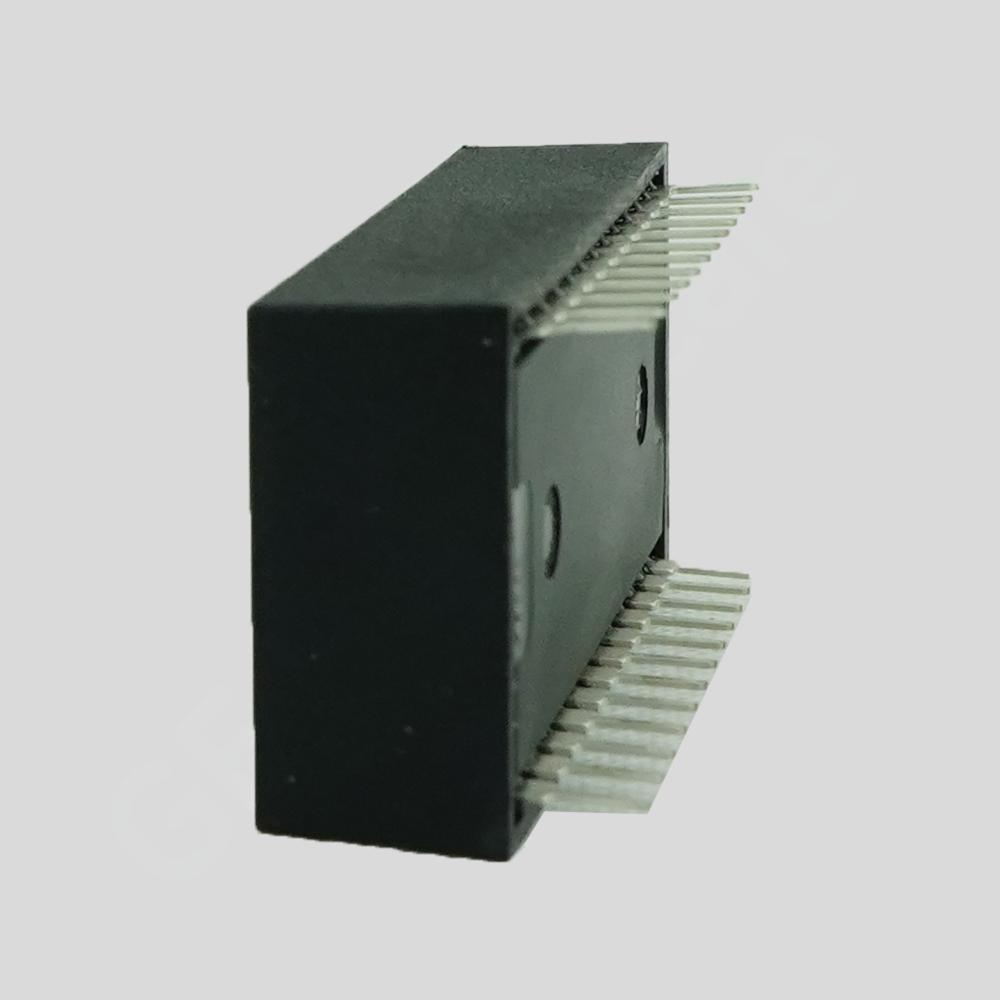

MOS NV-RAM 02KX8 TS 24 DIP MK48Z02

46-230318P1
0309103P
X-Ray
Definium AMX700
GE HealthCare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

The MOS NV-RAM 02KX8 TS 24 DIP MK48Z02 is a ZEROPOWER® RAM that is a 2 K x 8 non-volatile static RAM which is pin and function compatible with the DS1220. It has 24 special pins with a long-life lithium button cell to form a highly integrated battery-backed memory solution. The M48Z02/12 is a non-volatile pin and function equivalent to any JEDEC standard 2 K x 8 SRAM. It also easily fits into most ROM, EPROM, and EEPROM sockets, providing the non-volatility of PROMs without any requirement for special WRITE timing or limitations on the number of WRITEs that can be performed. This unit also has its own power-fail detection circuit. The control circuitry constantly monitors the single 5 Volt supply for an out of tolerance condition. This part is packaged with safe packing and is highly protected. It is widely used in UL LOGIQ e, UL LOGIQ 200, XM Senovision, XR Monitrol 90 Rad Table MPX/SPX GEN, NM Entegra Workstation, XM Senographe DS, XV Advantx LC, XR ACS1000 AUTO CHEST, Unassigned MV, XR Silhouette HF, XV Innova 2000, XF Monitrol 15 MVP and other machines.

Compatible Products

Definium AMX700

Definium AMX700

Equivalent Part

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
0309103P CI NOVRAM M48Z02.200PC1= MK 4802
