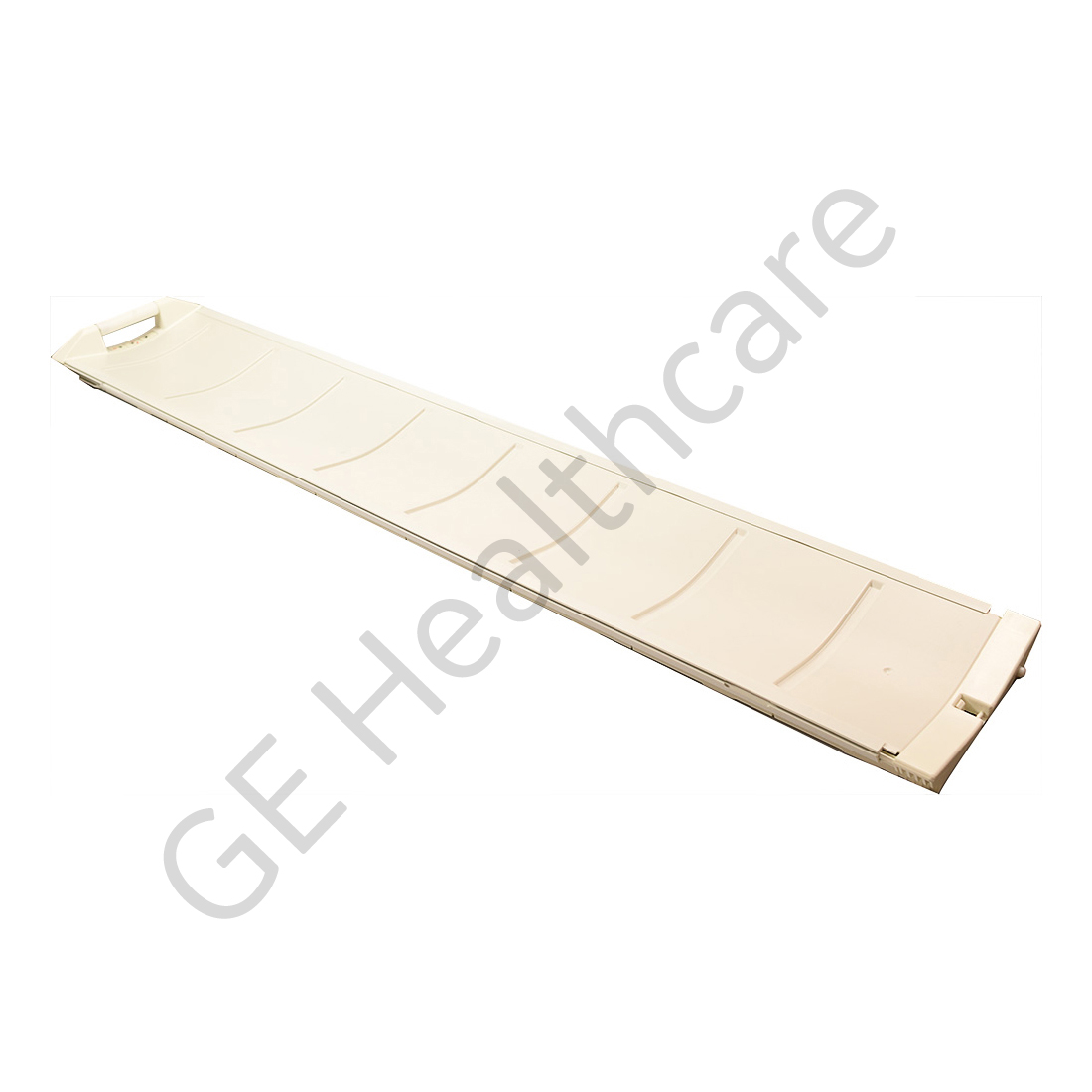

Cradle Assembly
| 2393108 | |
| 2395223 46-243321P1 46-301222G1 46-301222G4 | |
| Magnetic Resonance Imaging | |
| Other Magnetic Resonance Imaging (MRI) | |
| GE HealthCare | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview
The Cradle Assembly is an assembly that consists of the cradle assembly, packing assembly and a label. These are intended to use with a MRI patient. The cradle system is separated into three parts as front section, mid-section and rear section. In the front section, the washer is assembled with a countersink. It is made from polycarbonate which features outstanding toughness, good optical clarity and good electrical insulation. The front section consist of release bar, lever, cap and ball bearing. The ball bearing is a plain radial open non-magnetic glass balls with cage. The acetal material has high wear resistance and chemical resistance. The middle section also consists of a lever, adjustment block, latch, cap and ball bearings. The connecting rods are corrosion resistant, which helps extend life. It has LH and RH infinity hard top cradle side rails in the mid-section. The full system is covered with the bubble wrap. This assembly is being used in UL RT 3200, MR Signa Advantage 0.5T, XM MammoView, MR Signa Excite HD 1.5T, XM Senographe DS, MR Signa LX 1.5T, UL RT 3200, MR Signa Horizon LX 1.5T, UL LOGIQ 500, MR Signa Explorer D 1.5T, UL Vivid T8 R2, MR Signa Horizon LX 1.0T, MR Signa LX 1.5T, MR Signa Excite LX MR/i 1.5T, HCS-IT AW Workstation 4.0, MR Signa HDx 3.0T, HCS-IT AW Workstation 3.1, MR Signa Horizon LX 1.5T, HCS-IT AW and MR Signa Advantage 0.5T.
Equivalent Part
Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent part | Part Details |
|---|---|
| 2395223 | CRADLE ASSY WITH PACKING G1 |
| 46-243321P1 | 14-1/2" X 81" NAUGAHYDE LAMINATED |
| 46-301222G1 | 46-301222G1 |
| 46-301222G4 | CRADDLE ASM INFINITY COLOR |
