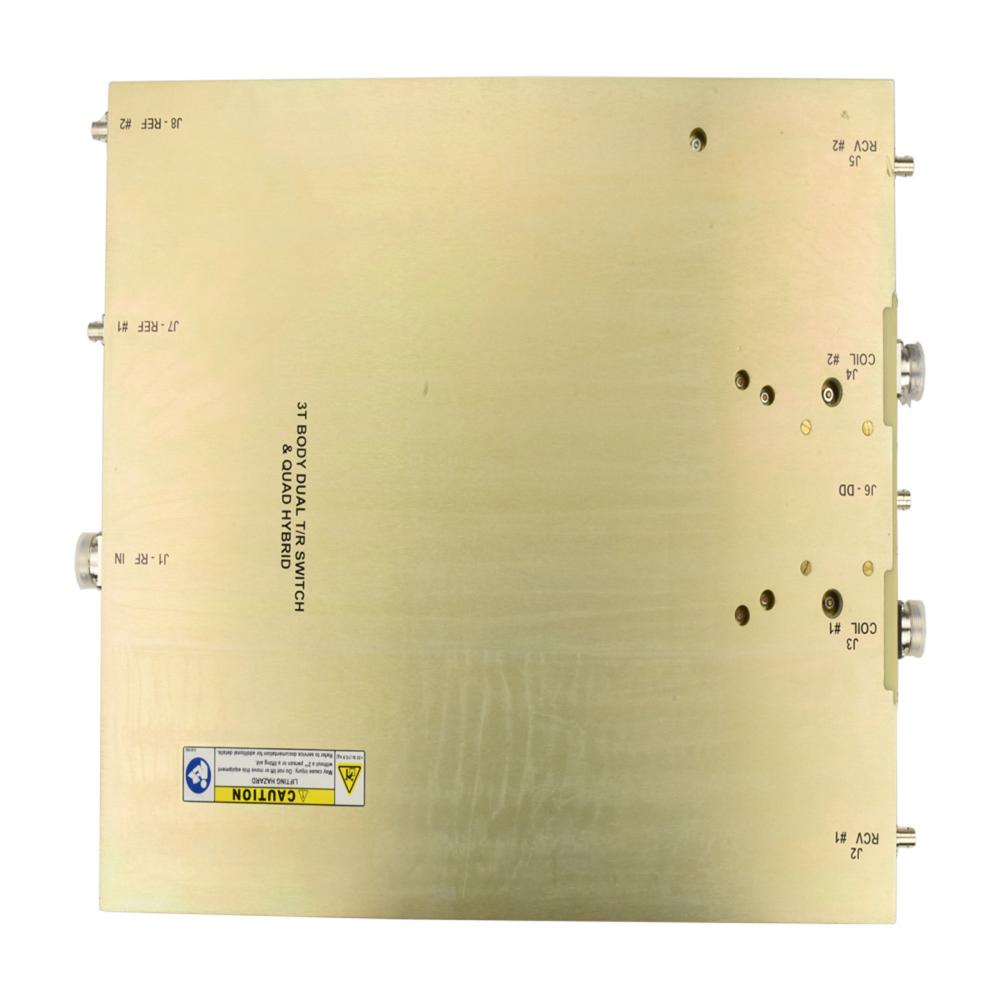

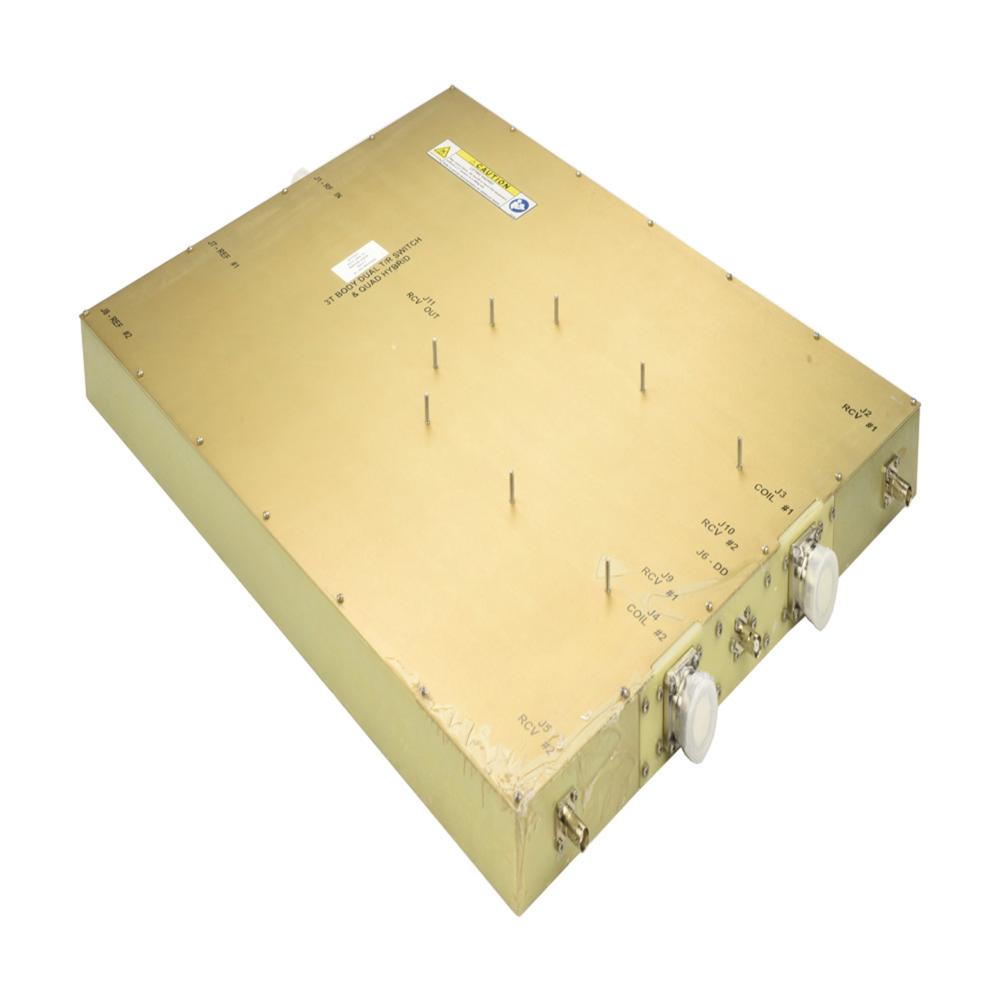

3T Dual Body T/R Switch Assembly 2370221
| 2370221 | |
| 2383995 | |
| Magnetic Resonance Imaging | |
| Signa HD 3.0T | |
| GE HealthCare | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview
The 3T-Dual Body T/R Switch is the Body Coil RF interface, to the system. During transmit mode the module splits the high RF power (35KW max.) to I, Q channels of the body coil while in receive mode the unit will direct the receive signals from the Body I,Q channels to the Preamp combiner module for first stage of amplification, and the I,Q receive signals will be combined and directed to one receive channel. The unit also contains two RF Traps and DD switches to improve body coil decoupling. The 3T Dual Body T/R Switch Assembly consists of a High power quad hybrid splitter, Two T/R Switches, Two RF Traps, Two Direct Drive Disable Switches and Two 50dB Directional Couplers for reflected power monitoring. The Assembly has four operation modes. The mode state is controlled by the TR bias, and the DD drive bias supplied by the SSM Body TR/DD driver. The assembly have all required connectors for easy connections. The assembly uses high quality components meeting the applicable standards for reliable operation. This assembly can be used with Signa HDxt 3.0T systems.
Compatible Products
Signa HD 3.0T
Signa HDx 3.0T
Signa HDxt 3.0T
Equivalent Part
Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent part | Part Details |
|---|---|
| 2383995 | G3 HYBRID SPLITTER/COMBINER ASM |
