RECON Accelerator Electronic Board Controlling Co

2316826-2
2316826
PET/CT
Discovery STE (8 Slice)
GE HealthCare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

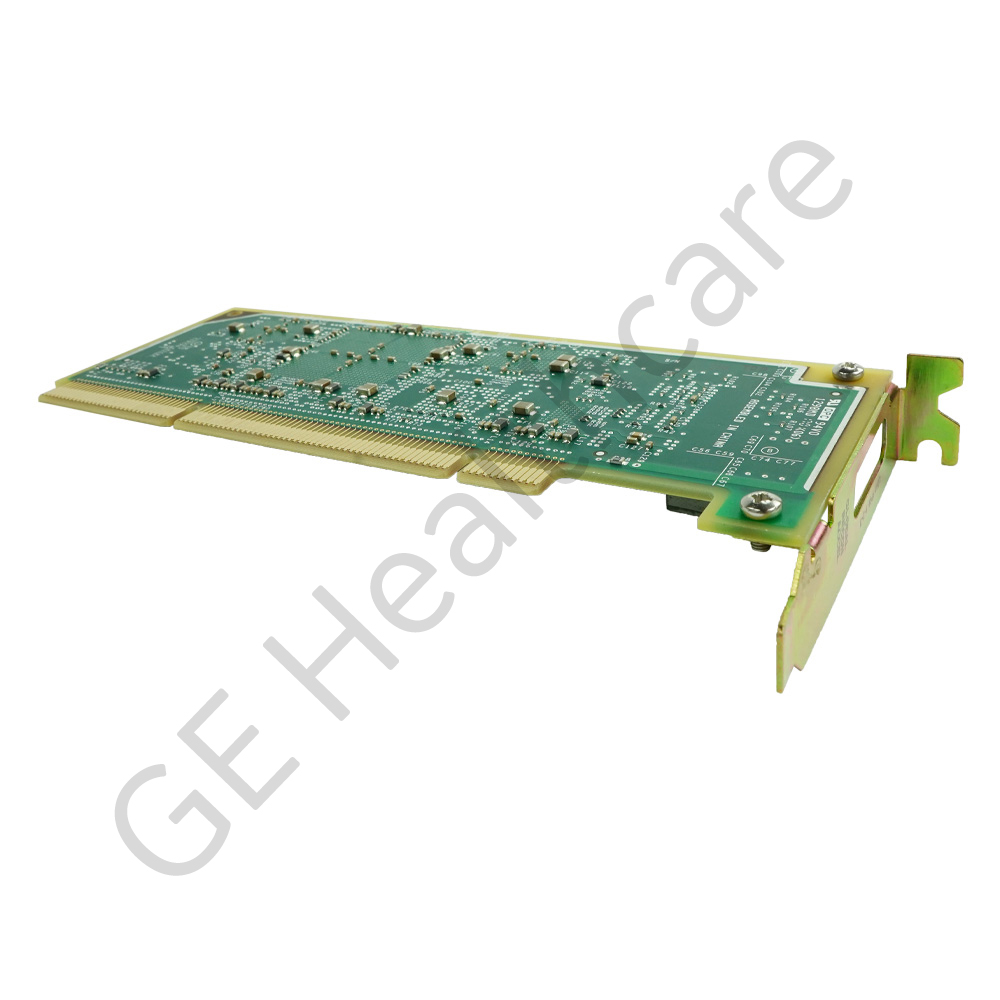

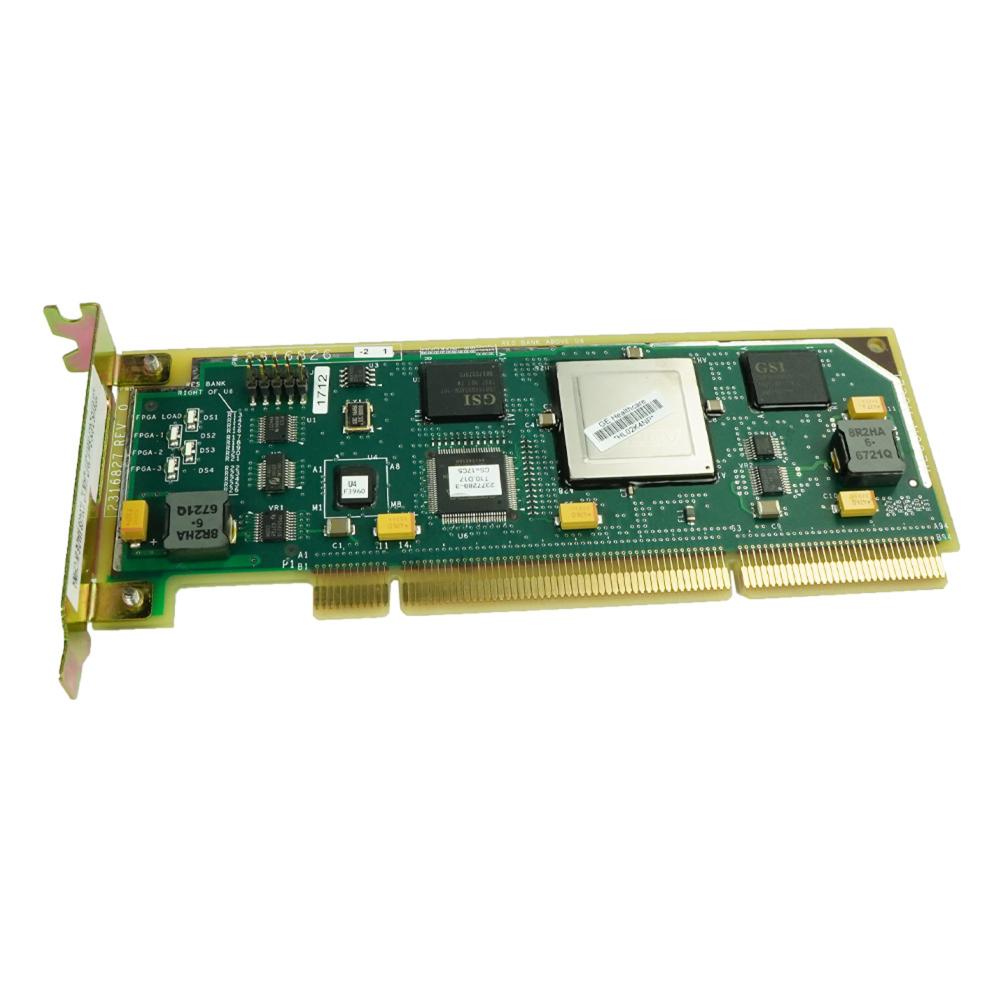

The RECON Accelerator Electronic Board Controlling Co is used in the computed Tomography (CT) machines, ultrasound machines and in a few other Digital Imaging (DI) machines. It is a Printed Circuit Board (PCB) with many components soldered to it and connected using the Printed Wire Assembly (PWA). It is a PC expansion card that dramatically increases the reconstruction performance of the Global Recon Engine (GRE) by off-loading specific applications from its general-purpose processors to fully programmable hardware. The major elements consist of Field Programmable Gate Array (FPGA), QDR™ (Quad Data Rate) Static Random Access Memory (SRAM) and flash memory. The power up configuration (PUC mode) performs hardware verification, saves verification results, and remains idle until instructed by the host software to re-configure itself for execution of an application specific function. The power up configuration contains a PCI bus interface, command decode unit and command block memory, QDR™ SRAM ‘A’ and ‘B’ interfaces, Flash memory and controller interface. Some of the applications are parallel beam back projection, fan beam back projection and cone beam back projection. It is designed to fit any off-the-shelf motherboard’s 3.3 volts, 64-bit PCI slot. This card is widely being used in machines such as BrightSpeed Edge Select 8 - Slice, Angio CT Biplane, LightSpeed 5.X HP60 16-Slice, Discovery ST HP 4-Slice, Infinia II and other medical diagnostic machines.

Compatible Products

VCT

VCT

Lightspeed RT

Lightspeed RT

Lightspeed Pro 16

Lightspeed Pro 16

Lightspeed 16

Lightspeed 16

Lightspeed Ultra

Lightspeed Ultra

HiSpeed Qxi

HiSpeed Qxi

Lightspeed Plus

Lightspeed Plus

Lightspeed QXi

Lightspeed QXi

Discovery ST

Discovery ST

Discovery ST (4 Slice)

Discovery ST (4 Slice)

Discovery ST (8 Slice)

Discovery ST (8 Slice)

Discovery ST (16 Slice)

Discovery ST (16 Slice)

Discovery STE

Discovery STE

Discovery STE (8 Slice)

Discovery STE (8 Slice)

Discovery STE (16 Slice)

Discovery STE (16 Slice)

Equivalent Part

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
2316826 RECON ACCELERATOR CARD
