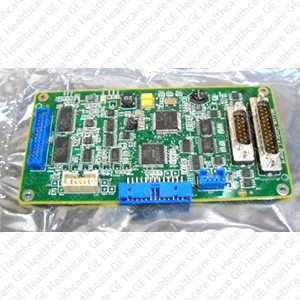

Optics Control Board 2273991

2273991
X-Ray
Precision 500D
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

The Optics Control Board combines the optical and copper paths on the same board. The copper paths are used to distribute the power and low speed data, whereas the optical paths are used to handle the high speed signals and data. The control board is the Optical Control Board (OCB) of the LEELOO CCD platform. The OCB software supports two types of MCU: MC68HC912D60 and MC68HC912D60A. The 68HC912D60 microcontroller unit (MCU) is a 16-bit device available in two package options, 80-pin QFP and 112-pin TQFP. The 68HC912D60 has a full 16-bit data paths throughout. The OCB software uses 60K flash EEPROM to store programs, 1K EEPROM to store the parameter database, ECT to accumulate AEC pulses, MSCAN to do CAN communication between OCB and SYSTEM, ATD0 to get the potentiometer voltage of IRIS, NDF, Rotation and One SCI to communicate with II power supply, and the other controlling ADCM. OCB uses the continuous potentiometer signals as feedback. OCB uses a temperature sensor to get the temperature around the board. If the temperature is too high (> 60.0° C), OCB will send a CAN message to alert system. This optical circuit board is used to reduce the surface area of the board by 20% and also reduce the number of layers of the board by 50%.

Compatible Products

Precision 500D

Precision 500D

Robust, digital performance at an efficient dose
It starts with the imaging chain, which features a 12-bit CCD-based camera.Then there’s AutoEx, which automatically adjusts key image-acquisition parameters in real time for optimum quality. Meanwhile, closed-loop Automatic Brightness Control and patented extended Dynamic Range circuitry maintain contrast and minimize blooming.
