Relay PCA Kit for Giraffe™ - RoHS

2080429-001
6600-0214-850
Maternal Infant Care
Giraffe Incubator
GE HealthCare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

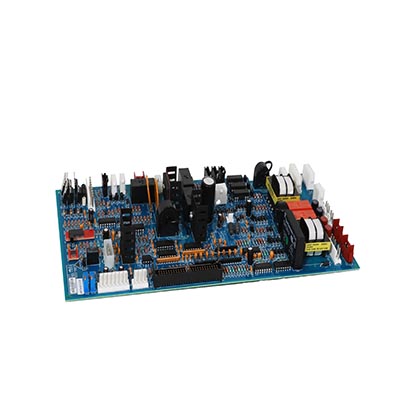

The Giraffe™ Incubator Carestation uses the Relay Board Kit, which consists of a relay board, warmer harness, an adapter, instruction manual, envelope with fuse, and an anti-static pad foam. The relay board includes 2 safety relays which close to supply mains power to the heater and motor circuits. Board assembly revision number is placed on the board for readability. The envelope consists of 2 replaceable fuses with the mark on the top as ""250V"". It is the combination of 3.15 amp fuse with 230 volts (15A/230V)1amp fuse (or) 2 amp fuse with 120 volts (2A/120V). These fuses are not orderable individually. It also includes an adhesive backed label in orange background with the letters and symbols printed on a black color. Kits have a wire harness to transmit signals from the relay board. Anti-static polyurethane foam is included to provide controlled dissipation of electro-static charges emitted from other neighboring materials during assembly and shipment of the product. It is recommended to fill the void using bubble wrap as required. This overall assembly is enclosed in a corrugated box with 200lbs burst strength to ensure safety during shipping and handling.

Compatible Products

Giraffe Incubator

Giraffe Incubator

Giraffe OmniBed

Giraffe OmniBed

Giraffe OmniBed Carestation

Giraffe OmniBed Carestation

Giraffe Incubator Carestation

Giraffe Incubator Carestation

Equivalent Part

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
6600-0214-850 ASSY-LAU, KIT SVCE PCA RELAY GIRAFFE, Manufacturing assembly
