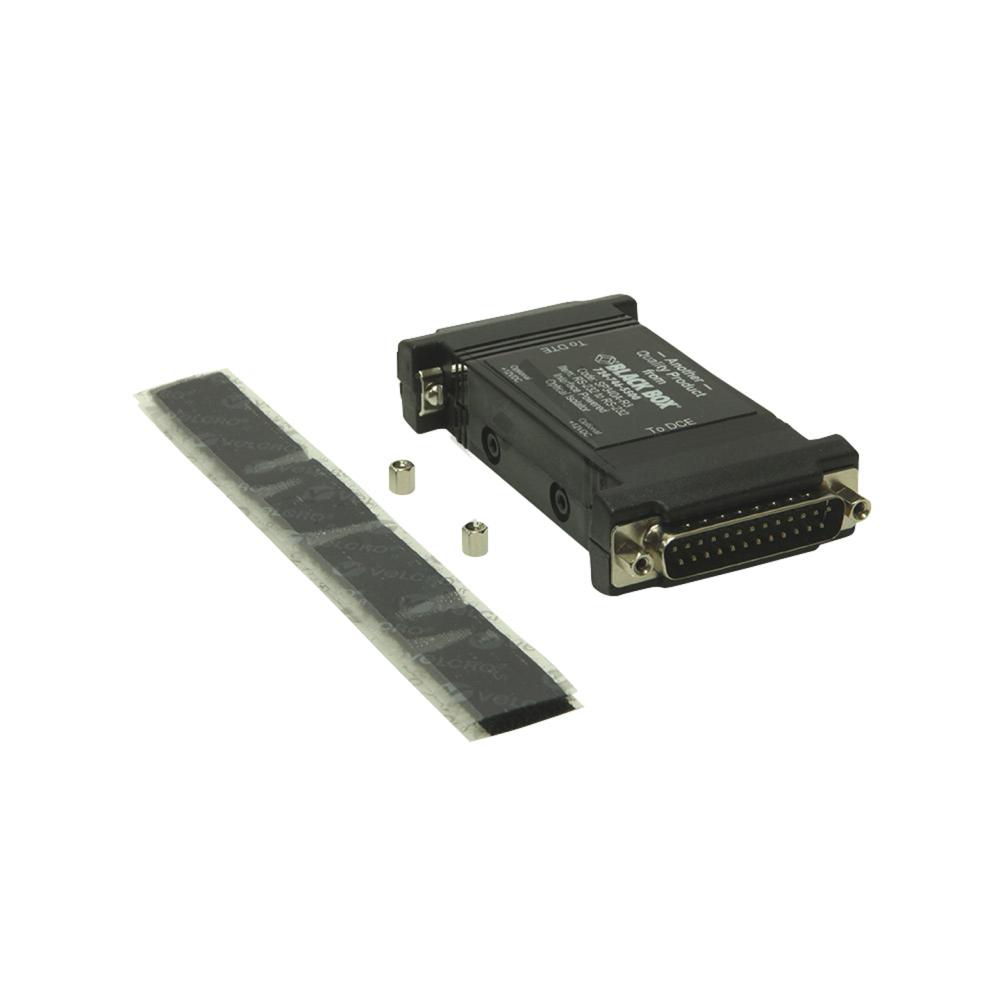

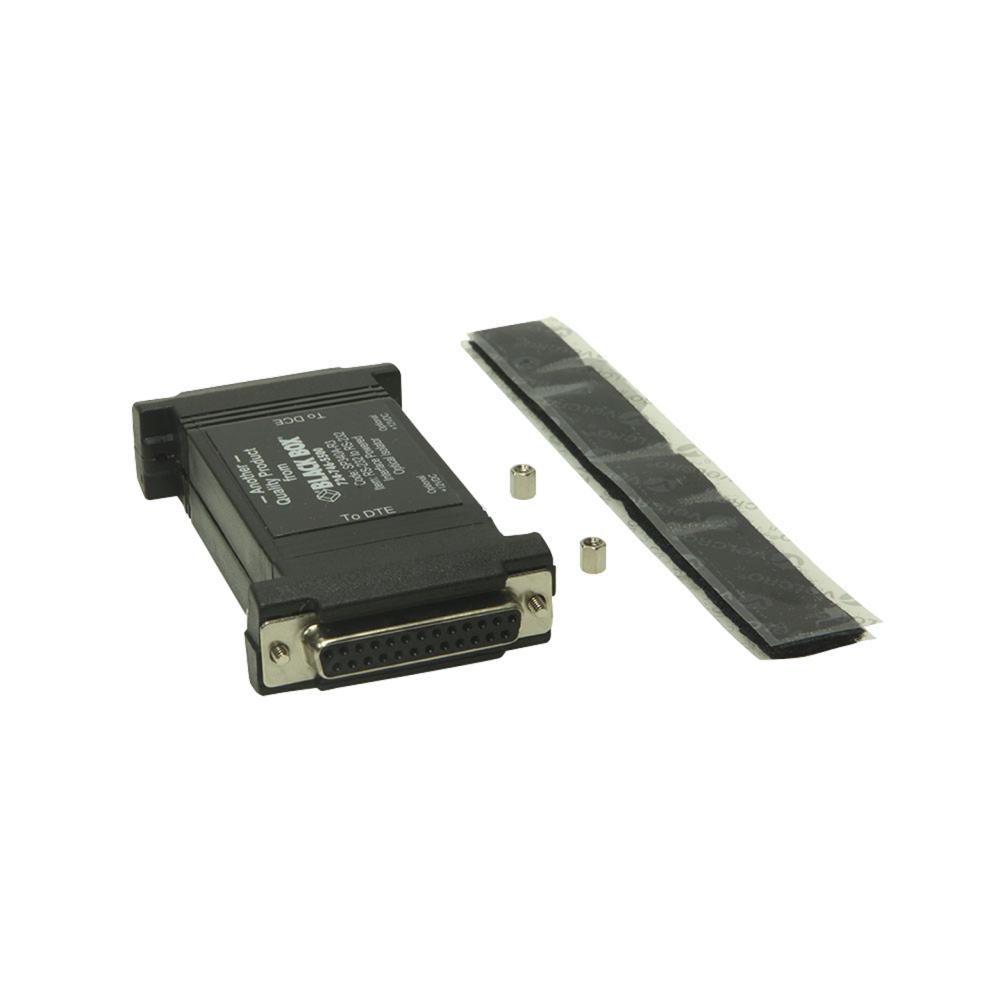

Opto Isolator Kit, Serial DB25

2042981-001
2007810-001
Diagnostic ECG
Invasive Cardiology
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

The Opto Isolator Kit hosts a serial DB25 opto isolator. An optical isolator is a device which is used to transfer an electrical signal between elements of a circuit while keeping them electrically isolated from each other. It helps in preventing damage to equipment from lightning surges, accidental high voltage shorts and ground loops. The opto Isolator provides 4000 Volts of isolation between sides and also maintains creep age and air clearances required for double or reinforced insulation. The two ends of the isolator are driven individually, which maintain isolation between them. This is accomplished for both ends by receiving power from the data and handshake lines, hence no external power is required in nearly all systems. In case the isolator is used with low power ports or where no handshake lines are available, the isolator can be powered using an external power supply. The external power supply can be given to either sides of the isolator. This flexible powering arrangement ensures that the a minimum number of supplies are required by the system. The Data Terminal Equipment (DTE) device connections are made through a DB-25 female and the Data Communication Equipment (DCE) device connections through a DB-25 male.

Compatible Products

Cath Lab

Cath Lab

Mac Lab

Mac Lab

BAIE

BAIE

Equivalent Part

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
2007810-001
