T-Base Cover Bottom Assembly
| 2037495-001 | |
| Maternal Infant Care | |
| Lullaby PT -ACS | |
| GE HealthCare | |
Add to Wish List
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Product Overview

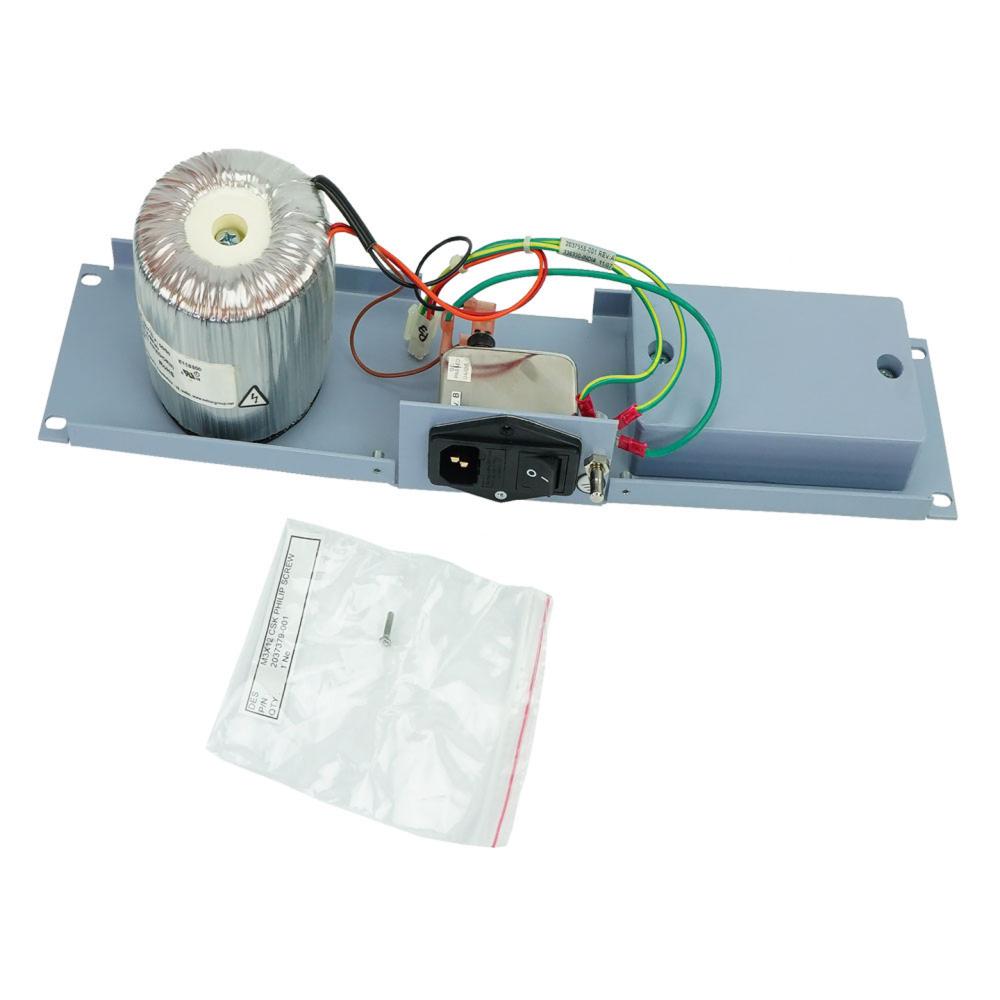

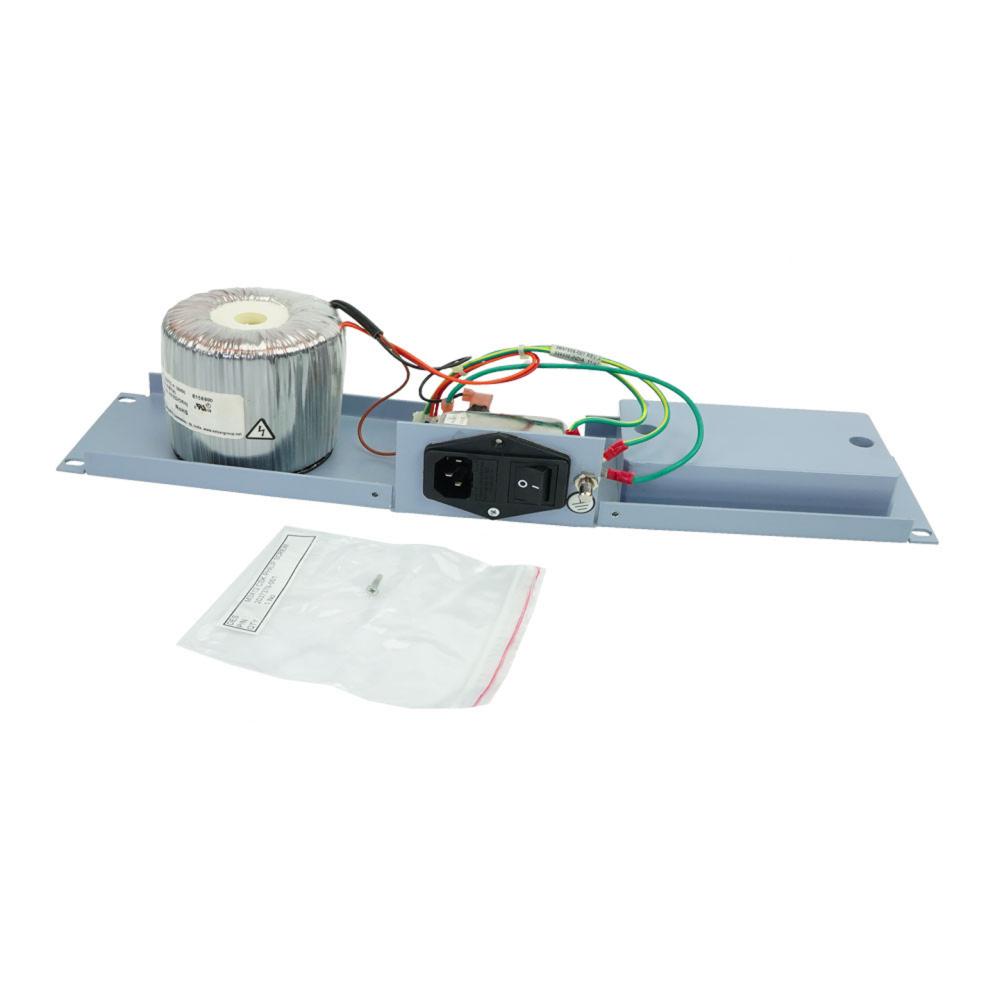

This T-Base Cover Assembly is compatible for use in GE's Lullaby LED Photo Therapy Systems. This Base Cover Assembly consists of a Cover Bottom which has provision of mounting a Power Inlet with switch, an Isolation Transformer with four pin female connector for further connection, Dead weight to counter-balance the transformer's weight and the wiring assembly. This T-Base Cover bottom is made up of 2 mm thick cold rolled close annealed material which offers High Tensile Strength, Good Hardness, High Creep Resistance and high chemical resistance to the base to withstand the weight of all mounted equipments. The Power Inlet module has two Glass Cartridge Time Delay fuses installed in it for protecting the device. The input supply can be provided through the EMI shielded IEC 320 type inlet module. The Brown and Black Input Terminals of the Isolating Transformer is connected to the Phase and Neutral connection of the Switch and the Output terminals are connected to pin number 1 and 2 of the four pin connector. Pin number 3 and 4 of the connector are grounded using the copper ring terminals with vinyl insulation. This cover assembly is dilignetly designed to install in the T-Base assembly using the provided four 10 X 6.5 mm mounting slots at the corners of the base cover. The This Product will be shipped in suitable packaging to give adequate protection during transit.
