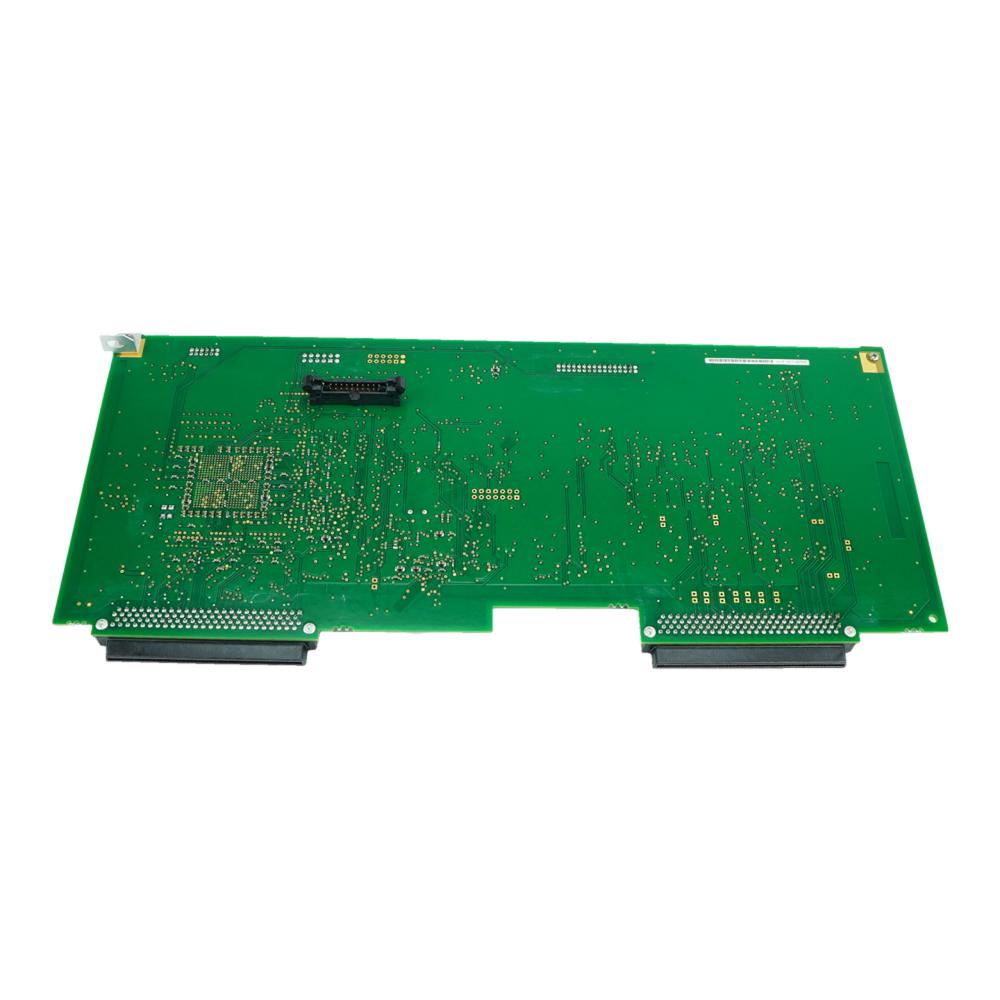

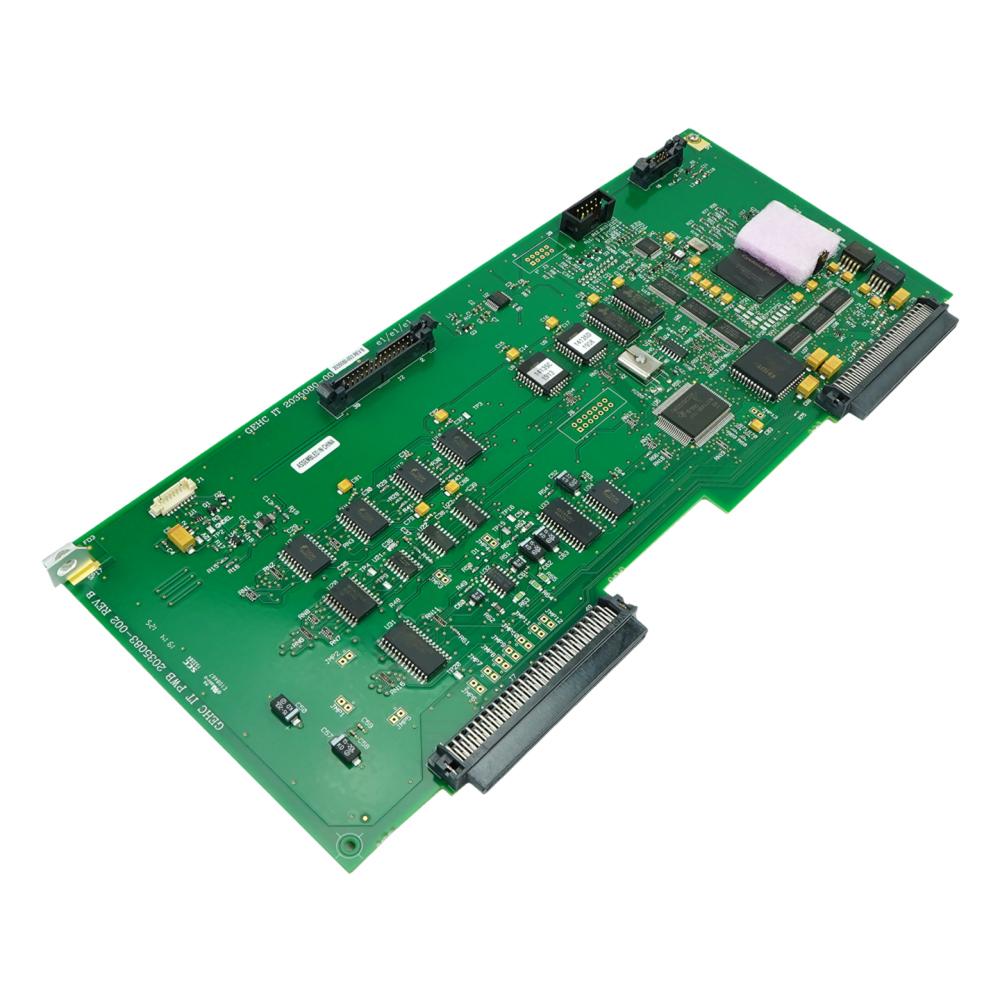

Corometrics 250CX DSP Board - RoHS

2025177-077
2025177-033
Maternal Infant Care
Corometrics 250cx Series
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

The Corometrics 250CX DSP Board is a Field Replaceable Unit (FRU) and a specially designed display board assembly service kit intended for use in Corometrics™ 250 series monitor and other medical equipment as applicable. The part can be used as a Field Replaceable Unit (FRU) during servicing and maintenance. The service kit is comprised of a Digital System Processor (DSP) / Display Board Printed Wiring Assembly (PWA), Product Identification (PID) and packing box. The DSP / display board consists of two independent functioning sub-circuits which are the DSP sub-circuit and the display interface sub-circuit. The DSP sub-circuit processes analog and digital data from the front-end modules and interfaces to the main processor. The ECG and ultrasound analog information is processed and heart rates are output to the main board via a shared memory. Digital pressure information is received, processed, and also sent to the shared memory. The Display sub-circuit consisting mainly of a shared memory and timing generator, provides the interface between the LCD and the main processor. The products high quality material helps offer reliable operation, efficient functioning and longer life span. The part is RoHS compliant and is approved for today’s safety standards. The product is securely packaged inside a high quality packing box to avoid physical damage during transit.

Compatible Products

Corometrics 250cx Series

Corometrics 250cx Series

Corometrics 250 Series

Corometrics 250 Series

Equivalent Part

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
2025177-033 FRU CORO 250CX DSP BOARD
