Shaft Bottom Support

1011-3388-000
Anesthesia Delivery
Aisys
GE HealthCare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

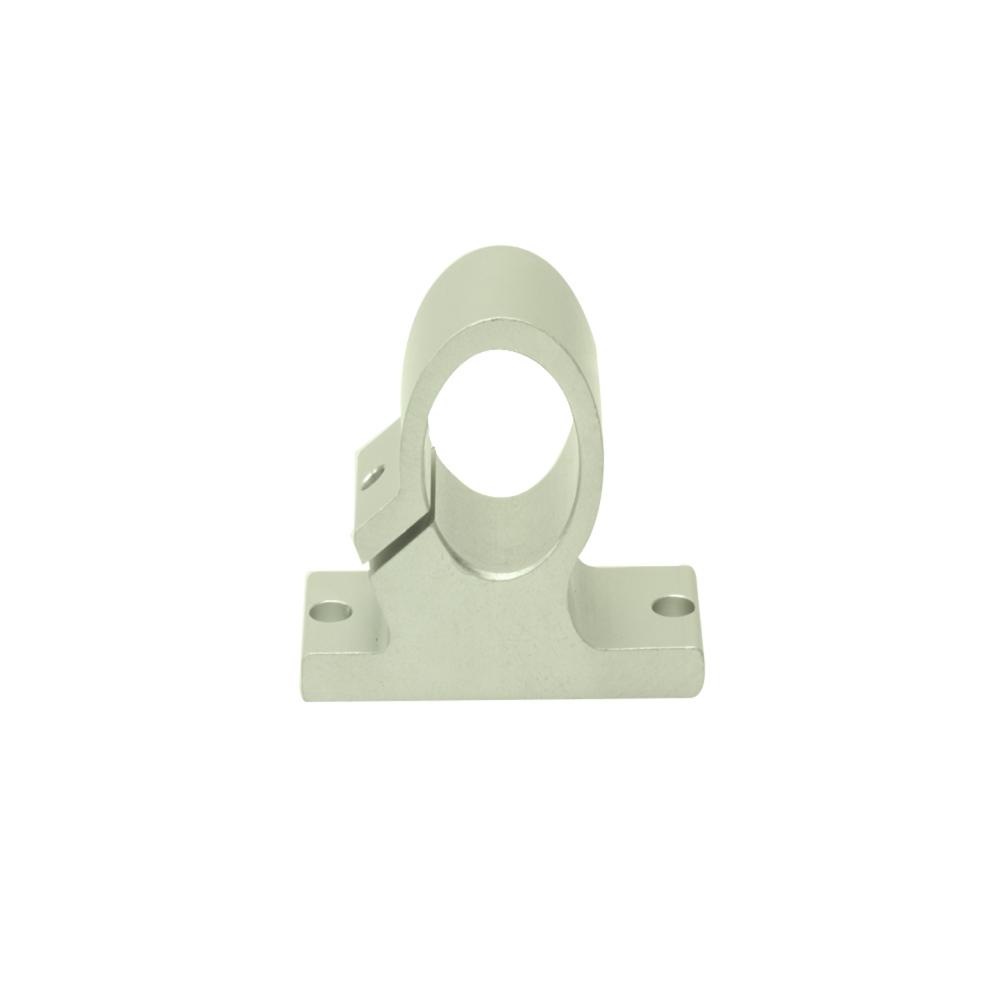

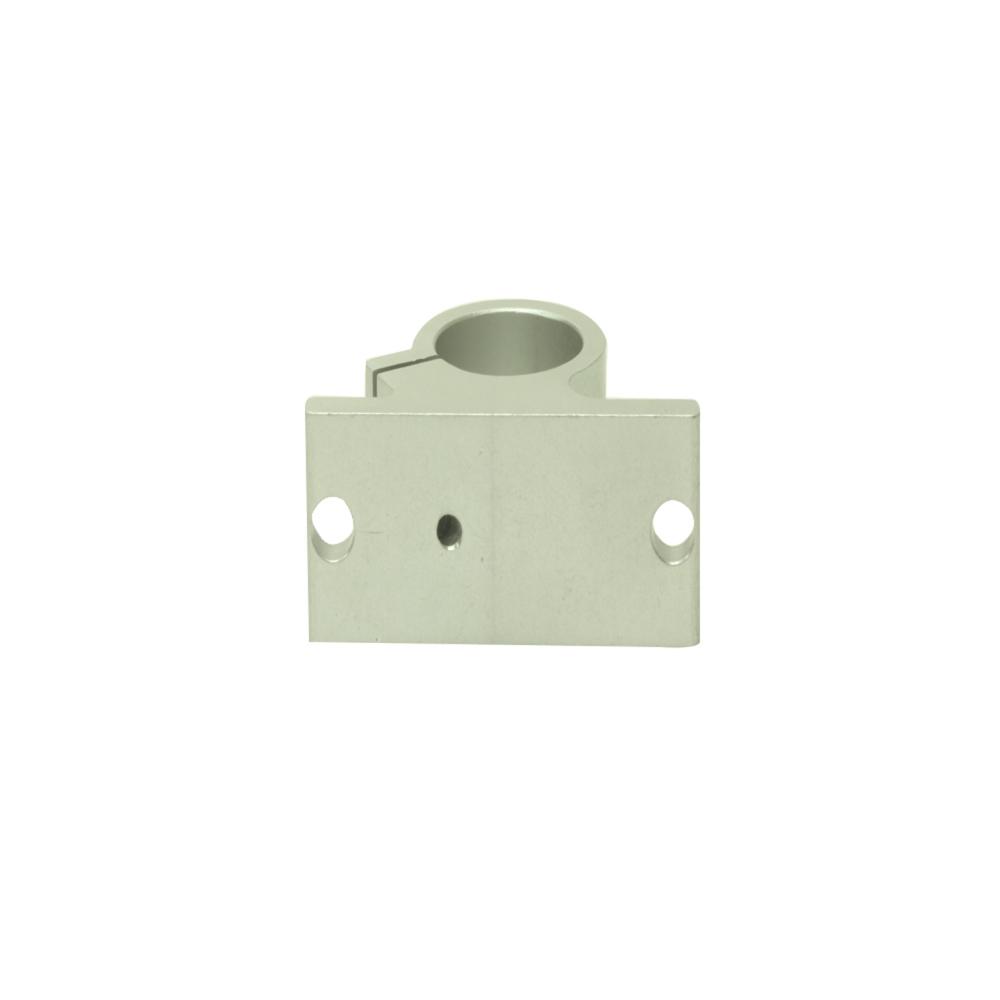

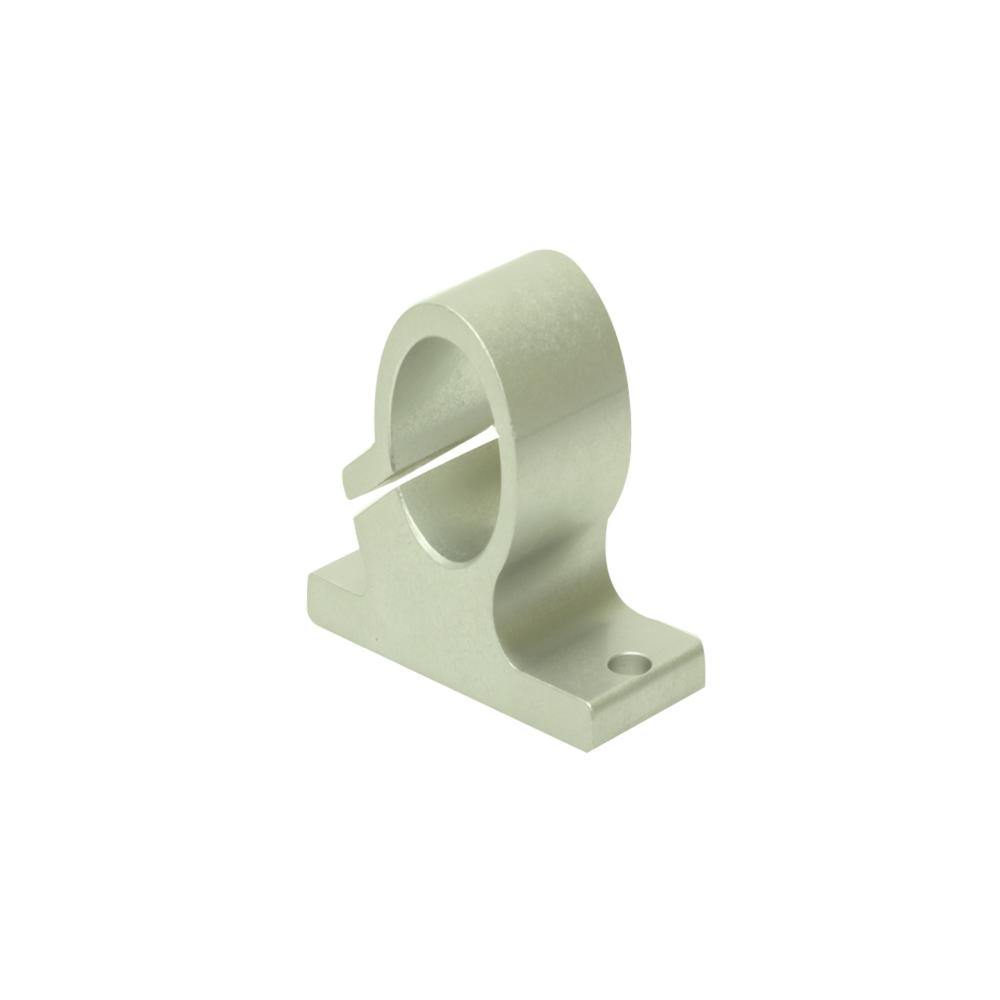

This Bottom Shaft Support block is specifically designed for Trolley Frame assembly of GE's S/5 Aisys Anesthesia Delivery Systems. The extruded support assembly is made up of Aluminum 6063-T6 material which is an aluminium alloy, with magnesium and silicon as the alloying elements that offers good tensile strength, yield strength and has good elongation properties. The block comes with a clamp mechanism that can accomodate shafts of diameter varying between 23.80 to 24.87 mm which can be fastened by torquing the M4 size screw in the provided tapping. The two 7 mm diameter through holes on the bottom of this support block can be used to firmly mount it on the frame assembly. This compact size block is diligently designed to offer reliable operation, efficient functioning and long service life. The MIL-A-8625 finish on the block gives it a neat appearance and helps in enhancing the overall aesthetics of the system. This RoHS compliant shaft support block will be shipped in suitable packaging to provide adequate protection during transit.

Compatible Products

Aisys

Aisys
