Panasonic Kit with RTV Printed Wiring Assembly

46-329098G7
46-329098G4 46-329098G5
X-Ray
Definium AMX700
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

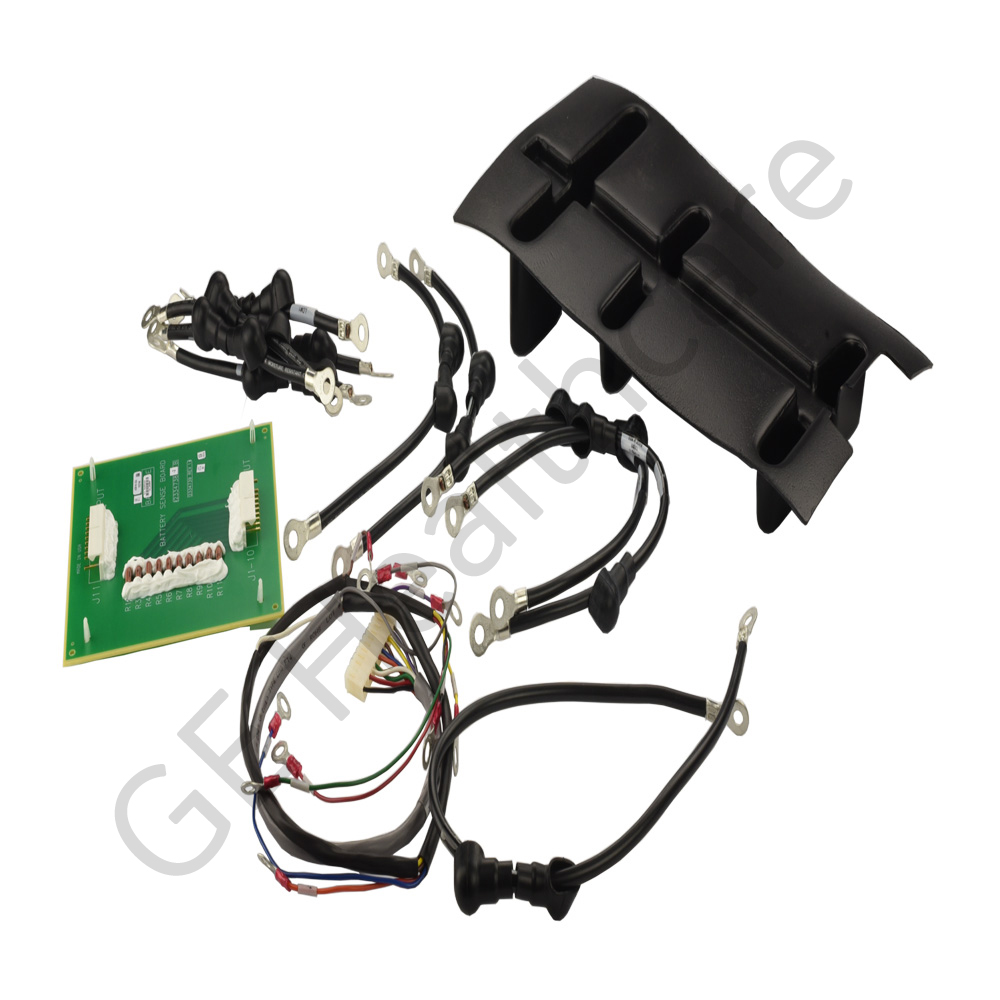

The Panasonic Kit with RTV Printed Wiring Assembly consists of Battery sense circuit board, battery spacer, Baterry sense cable harness and battery cable leads. The circuit board is double sided board made up of FR-4 Glass fiber, which is a composite material that consists of glass fabric, electrical grade epoxy resin. The material is strong and stiff, has a low coefficient of thermal expansion, and outstanding electrical properties. The board has two 11 position molex connector for input and output. The battery spacer is made up of high density Ethylene Hexene copolymer. The cable harness has 10 conductor cable with 11 pin female connector at one side and 10 ring terminals at other side. The battery cable leads are made by cable of size 8AWG with ring terminals on both sides. There are 10 leads in the kit with four different lengths. This kit can be used with GE's Definium AMX700 systems.

Compatible Products

Definium AMX700

Definium AMX700

Equivalent Part

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
46-329098G4 SERVICE KIT PANASONIC CONNECTION KIT
46-329098G5
